2316-3-00-80-00-00-07-0

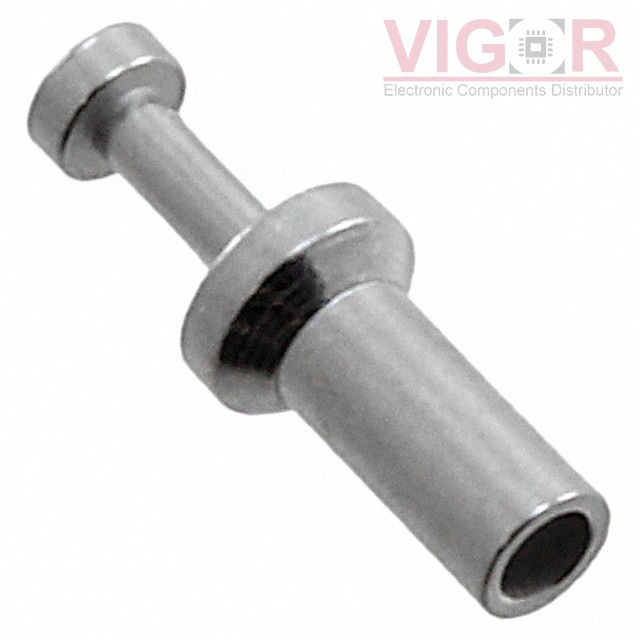

Image is for reference,
please contact us to get the real picture

Part No :

2316-3-00-80-00-00-07-0

Manufacturer
Mill-Max
Description
TERM TURRET SINGLE L=3.84MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
2316-3-00-80-00-00-07-0 PDF
Availability
6745 pieces
Unit Price
$0.19000

Current price of 2316-3-00-80-00-00-07-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:2316
Package:Bulk
Part Status:Active
Terminal Type:Single End
Number of Turrets:Single
Length - Above Board:0.151" (3.84mm)
Length - Below Flange:0.125" (3.18mm)
Length - Overall:0.276" (7.01mm)
Mounting Type:Through Hole
Termination:Swage
Flange Diameter:0.094" (2.39mm)
Diameter - Turret Head:0.060" (1.52mm)
Staking Side OD:0.060" (1.52mm)
Staking Side ID:0.042" (1.07mm)
Mounting Hole Diameter:0.064" (1.63mm)
Board Thickness:0.094" (2.39mm)
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:200.0µin (5.08µm)
Insulation:Non-Insulated
