1514-3

1514-3

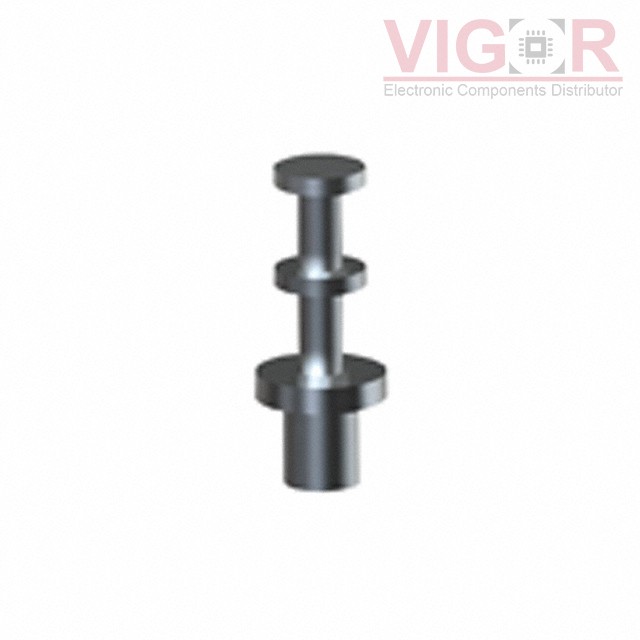

Image is for reference,
please contact us to get the real picture

Part No :

1514-3

Manufacturer
Keystone Electronics Corp.
Description
TERM TURRET SINGLE L=7.14MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
1514-3 PDF
Availability
4700 pieces
Unit Price
$0.39320

Current price of 1514-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1514-3 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:Single End
Number of Turrets:Double
Length - Above Board:0.281" (7.14mm)
Length - Below Flange:0.135" (3.43mm)
Length - Overall:0.416" (10.57mm)
Mounting Type:Through Hole
Termination:Staking Flare
Flange Diameter:0.156" (3.96mm)
Diameter - Turret Head:0.109" (2.77mm)
Staking Side OD:0.090" (2.29mm)
Staking Side ID:-
Mounting Hole Diameter:0.094" (2.39mm)
Board Thickness:0.093" (2.36mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
