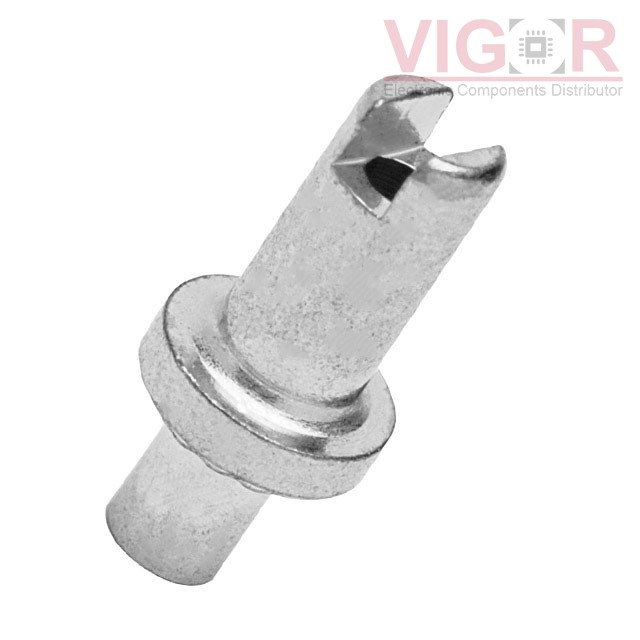

H3070-01

Image is for reference,
please contact us to get the real picture

Part No :: H3070-01

Manufacturer: Harwin

Description: TERM TURRET HOLLOW L=6.25-6.63MM

Catalog: Terminals - Turret Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: H3070-01 PDF

Availability: 0 pieces

Unit Price: ~~$0.26999~~

Current price of H3070-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H3070-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End, Fork, Hollow
Number of Turrets:	Single
Length - Above Board:	0.246" ~ 0.261" (6.25mm ~ 6.63mm)
Length - Below Flange:	0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall:	0.340" ~ 0.360" (8.64mm ~ 9.15mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.153" ~ 0.159" (3.88mm ~ 4.04mm)
Diameter - Turret Head:	-
Staking Side OD:	0.076" ~ 0.079" (1.93mm ~ 2.01mm)
Staking Side ID:	-
Mounting Hole Diameter:	0.080" ~ 0.083" (2.03mm ~ 2.11mm)
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
