1583-3

1583-3

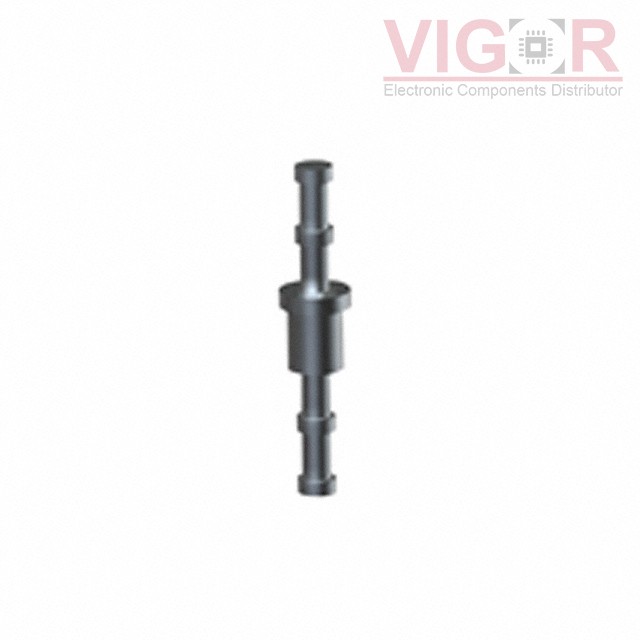

Image is for reference,
please contact us to get the real picture

Part No :

1583-3

Manufacturer
Keystone Electronics Corp.
Description
TERM TURRET DOUBLE L=4.72MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
1583-3 PDF
Availability
3700 pieces
Unit Price
$0.34970

Current price of 1583-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1583-3 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:Double End
Number of Turrets:Double
Length - Above Board:0.186" (4.72mm)
Length - Below Flange:0.277" (7.04mm)
Length - Overall:0.463" (11.76mm)
Mounting Type:Through Hole
Termination:Staking Flare
Flange Diameter:0.093" (2.36mm)
Diameter - Turret Head:0.050" (1.27mm)
Staking Side OD:0.072" (1.83mm)
Staking Side ID:-
Mounting Hole Diameter:0.076" (1.93mm)
Board Thickness:0.093" (2.36mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
