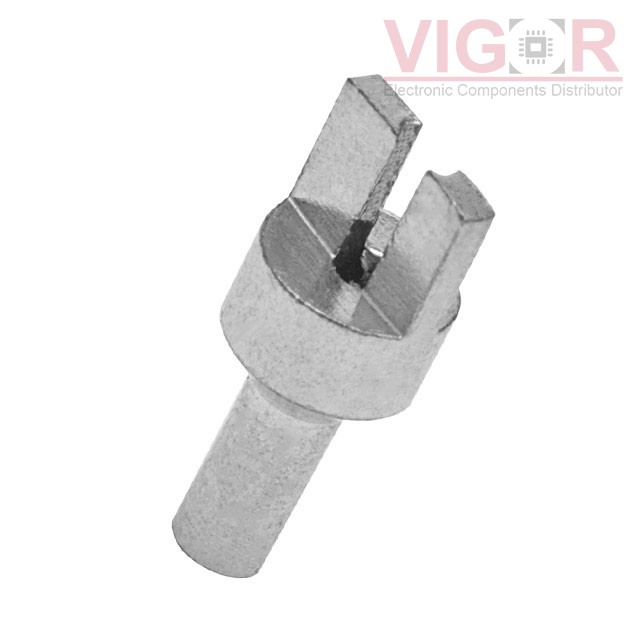

H9066-01

H9066-01

Image is for reference,
please contact us to get the real picture

Part No :

H9066-01

Manufacturer
Harwin
Description
TERM TURRET HOLLOW L=4.75MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
H9066-01 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of H9066-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H9066-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Terminal Type:Single End, Fork, Hollow
Number of Turrets:Single
Length - Above Board:0.187" (4.75mm)
Length - Below Flange:0.094" (2.39mm)
Length - Overall:0.281" (7.14mm)
Mounting Type:Through Hole
Termination:Swage
Flange Diameter:0.125" (3.18mm)
Diameter - Turret Head:-
Staking Side OD:0.059" ~ 0.060" (1.50mm ~ 1.52mm)
Staking Side ID:0.042" ~ 0.043" (1.07mm ~ 1.09mm)
Mounting Hole Diameter:0.060" ~ 0.063" (1.52mm ~ 1.60mm)
Board Thickness:0.063" (1.60mm)
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1583-4

1583-4

TERM TURRET DOUBLE L=4.72MM TIN

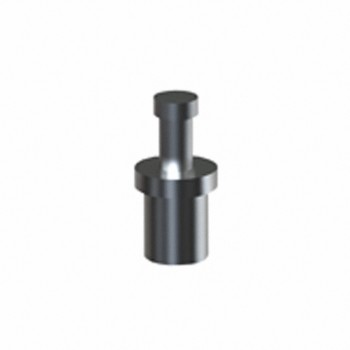

HOT 1572-4

1572-4

TERM TURRET SINGLE L=2.64MM TIN

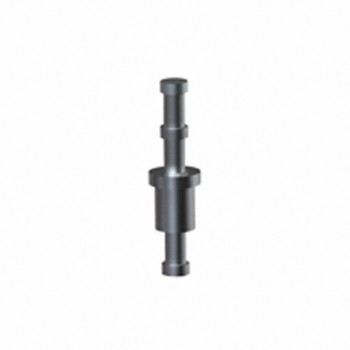

HOT 1575-1
