690-W05-290-483

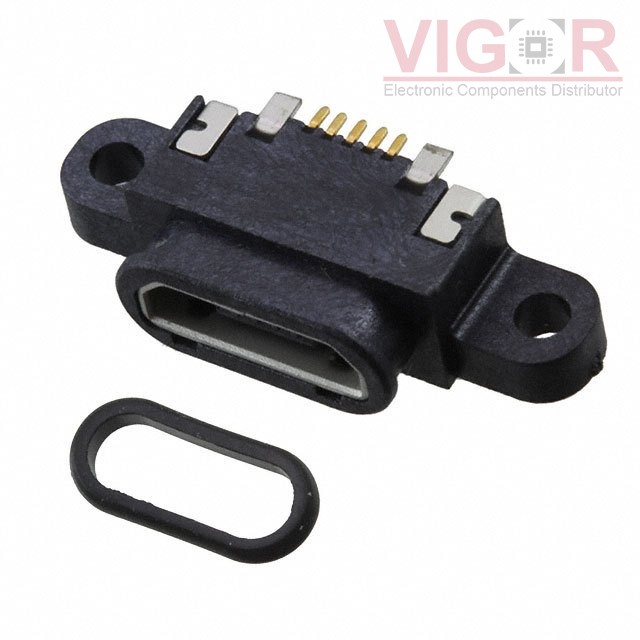

Image is for reference,
please contact us to get the real picture

Part No :: 690-W05-290-483

Manufacturer: EDAC Inc.

Description: CONN RCPT USB1.0 MICRO B SMD R/A

Catalog: USB, DVI, HDMI Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: 690-W05-290-483 PDF

Availability: 7373 pieces

Unit Price: ~~$2.85000~~

Current price of 690-W05-290-483 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

690-W05-290-483 Specifications

Type	Description
Series:	690W
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	USB - micro B
Number of Contacts:	5
Gender:	Receptacle
Specifications:	USB 1.0
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	Flange, Horizontal
Termination:	Solder
Features:	Solder Retention
Ingress Protection:	IP67 - Dust Tight, Waterproof
Operating Temperature:	-25°C ~ 85°C
Number of Ports:	1
Current Rating (Amps):	1A per Contact
Voltage - Rated:	-
Mating Cycles:	-
Shielding:	Unshielded

Please confirm the specifications of the products when ordering.
