MUSB-05-F-AB-SM-A-K-TR

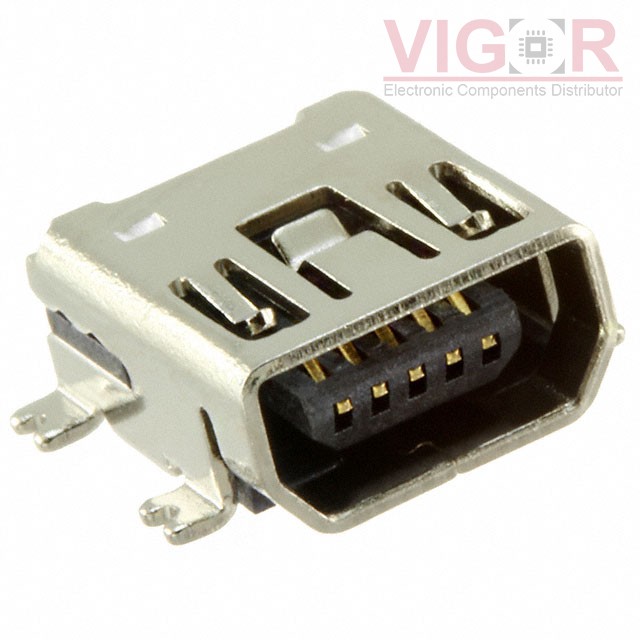

Image is for reference,
please contact us to get the real picture

Part No :: MUSB-05-F-AB-SM-A-K-TR

Manufacturer: Samtec, Inc.

Description: CONN RCPT USB2.0 MINI AB SMD R/A

Catalog: USB, DVI, HDMI Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: MUSB-05-F-AB-SM-A-K-TR PDF

Availability: 0 pieces

Unit Price: ~~$1.44000~~

Current price of MUSB-05-F-AB-SM-A-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MUSB-05-F-AB-SM-A-K-TR Specifications

Type	Description
Series:	MUSB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	USB - mini AB
Number of Contacts:	5
Gender:	Receptacle
Specifications:	USB 2.0
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	Horizontal
Termination:	Solder
Features:	Board Guide, Pick and Place, Solder Retention
Ingress Protection:	-
Operating Temperature:	-50°C ~ 85°C
Number of Ports:	1
Current Rating (Amps):	-
Voltage - Rated:	30V
Mating Cycles:	1500
Shielding:	Unshielded
