CX80B1-24P

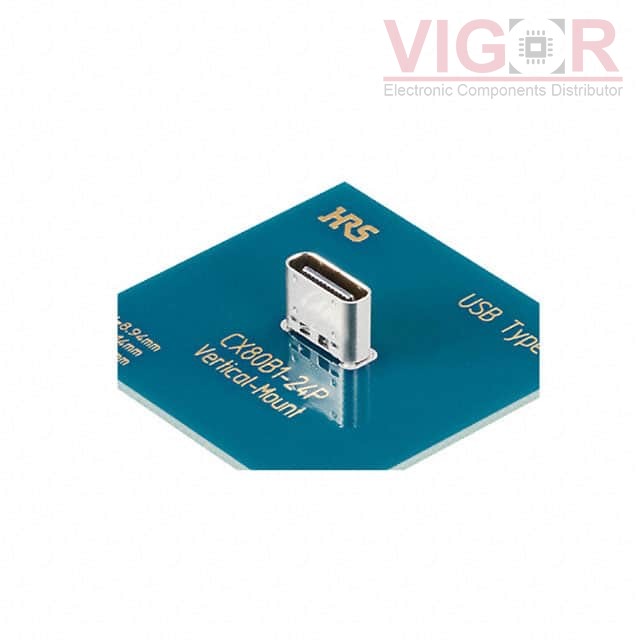

Image is for reference,
please contact us to get the real picture

Part No :: CX80B1-24P

Manufacturer: Hirose

Description: CONN RCPT USB3.1 TYPE C SMT VERT

Catalog: USB, DVI, HDMI Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: CX80B1-24P PDF

Availability: 0 pieces

Unit Price: ~~$3.23000~~

Current price of CX80B1-24P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CX80B1-24P Specifications

Type	Description
Series:	CX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	USB-C (USB TYPE-C)
Number of Contacts:	24
Gender:	Receptacle
Specifications:	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type:	Surface Mount, Through Hole
Mounting Feature:	Reversible, Vertical
Termination:	Solder
Features:	-
Ingress Protection:	-
Operating Temperature:	-40°C ~ 85°C
Number of Ports:	1
Current Rating (Amps):	0.25A, 1.25A
Voltage - Rated:	20VAC
Mating Cycles:	10000
Shielding:	Shielded

Please confirm the specifications of the products when ordering.
