1050171001

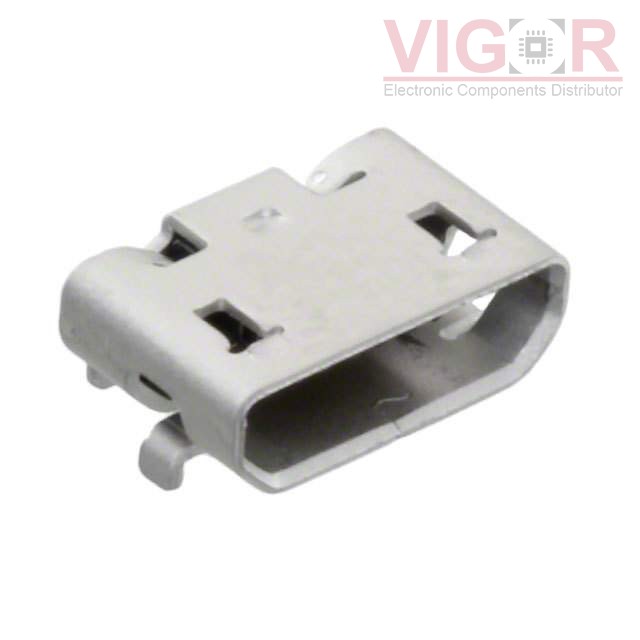

Image is for reference,
please contact us to get the real picture

Part No :: 1050171001

Manufacturer: Woodhead - Molex

Description: CONN RCPT USB2.0 MICRO B SMD R/A

Catalog: USB, DVI, HDMI Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 19 - Jul 23 2025

DataSheet: 1050171001 PDF

Availability: 6902 pieces

Unit Price: ~~$1.46000~~

Current price of 1050171001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1050171001 Specifications

Type	Description
Series:	105017
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	USB - micro B
Number of Contacts:	5
Gender:	Receptacle
Specifications:	USB 2.0
Mounting Type:	Surface Mount, Right Angle
Mounting Feature:	Horizontal
Termination:	Solder
Features:	Pick and Place, Solder Retention
Ingress Protection:	-
Operating Temperature:	-30°C ~ 85°C
Number of Ports:	1
Current Rating (Amps):	1A, 1.8A
Voltage - Rated:	30VAC
Mating Cycles:	10000
Shielding:	Shielded
