7B-16.9344MAAE-T

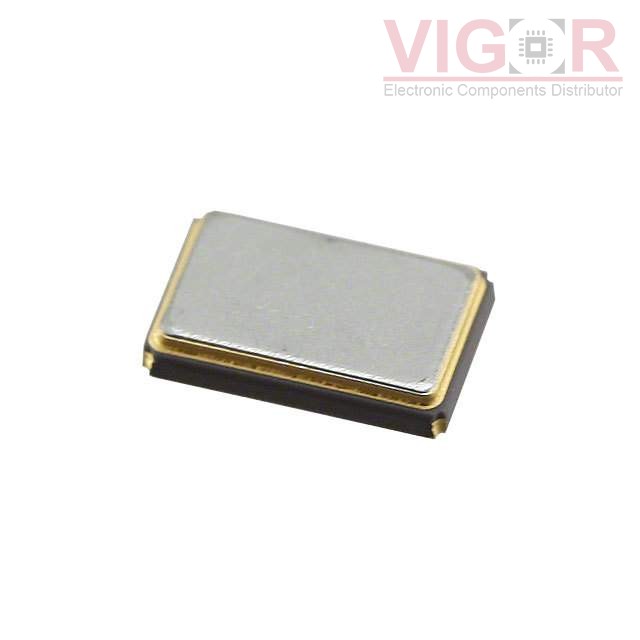

Image is for reference,
please contact us to get the real picture

Part No :: 7B-16.9344MAAE-T

Manufacturer: TXC Corporation

Description: CRYSTAL 16.9344MHZ 12PF SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 7B-16.9344MAAE-T PDF

Availability: 0 pieces

Unit Price: ~~$0.39000~~

Current price of 7B-16.9344MAAE-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7B-16.9344MAAE-T Specifications

Type	Description
Series:	7B
Package:	Tape & Reel (TR)
Part Status:	Last Time Buy
Type:	MHz Crystal
Frequency:	16.9344 MHz
Frequency Stability:	±30ppm
Frequency Tolerance:	±30ppm
Load Capacitance:	12pF
ESR (Equivalent Series Resistance):	40 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-20°C ~ 70°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max):	0.041" (1.05mm)
