ABM8W-22.6600MHZ-7-J2Z-T3

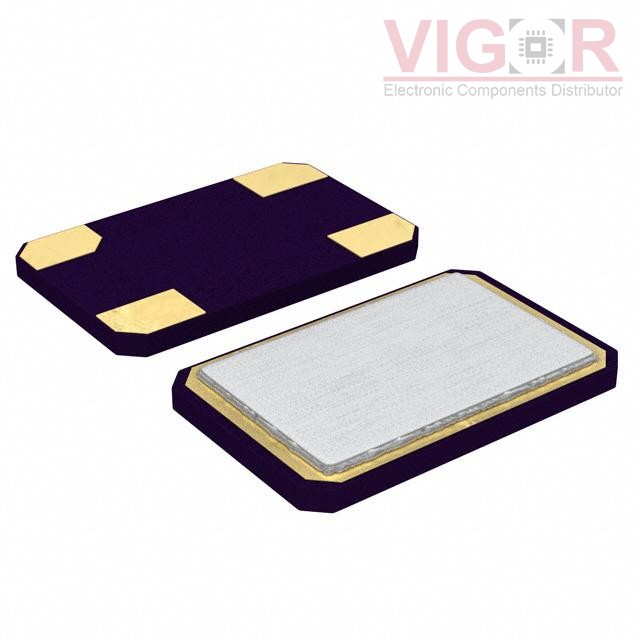

Image is for reference,
please contact us to get the real picture

Part No :: ABM8W-22.6600MHZ-7-J2Z-T3

Manufacturer: Abracon

Description: CRYSTAL 22.6600MHZ 7PF SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Jun 29 - Jul 03 2025

DataSheet: ABM8W-22.6600MHZ-7-J2Z-T3 PDF

Availability: 0 pieces

Unit Price: ~~$0.34560~~

Current price of ABM8W-22.6600MHZ-7-J2Z-T3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ABM8W-22.6600MHZ-7-J2Z-T3 Specifications

Type	Description
Series:	ABM8W
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	MHz Crystal
Frequency:	22.66 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±20ppm
Load Capacitance:	7pF
ESR (Equivalent Series Resistance):	50 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.030" (0.75mm)
