AA-14.31818MAGK-T

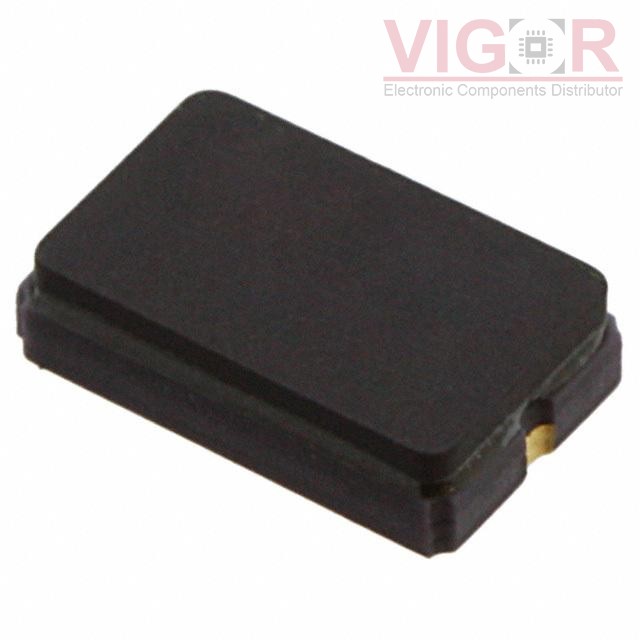

Image is for reference,
please contact us to get the real picture

Part No :

AA-14.31818MAGK-T

Manufacturer
TXC Corporation
Description
CRYSTAL 14.31818MHZ 20PF SMD
Catalog
Crystals
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
AA-14.31818MAGK-T PDF
Availability
0 pieces
Unit Price
$0.43500

Current price of AA-14.31818MAGK-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:AA
Package:Tape & Reel (TR)
Part Status:Active
Type:MHz Crystal
Frequency:14.31818 MHz
Frequency Stability:±50ppm
Frequency Tolerance:±30ppm
Load Capacitance:20pF
ESR (Equivalent Series Resistance):100 Ohms
Operating Mode:Fundamental
Operating Temperature:-40°C ~ 85°C
Ratings:AEC-Q200
Mounting Type:Surface Mount
Package / Case:2-SMD, No Lead
Size / Dimension:0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max):0.053" (1.35mm)
