NX3225SA-20.000000MHZ-B2

NX3225SA-20.000000MHZ-B2

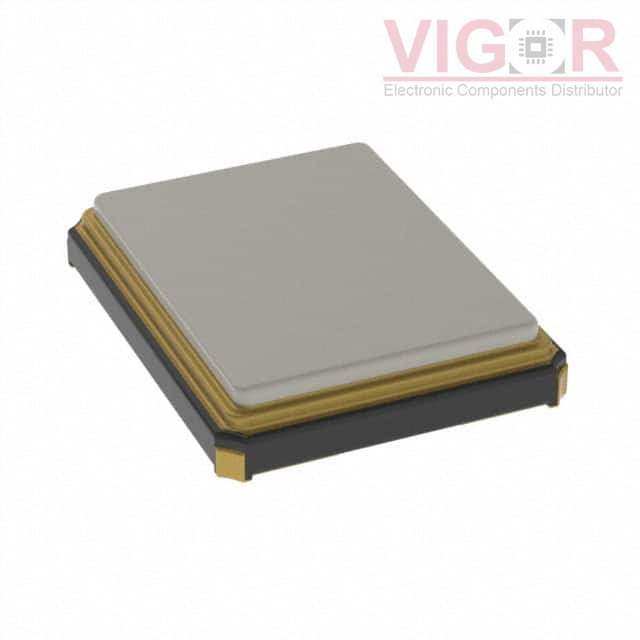

Image is for reference,
please contact us to get the real picture

Part No :

NX3225SA-20.000000MHZ-B2

Manufacturer
NDK
Description
CRYSTAL 20.0000MHZ 7.2PF SMD
Catalog
Crystals
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
NX3225SA-20.000000MHZ-B2 PDF
Availability
922 pieces
Unit Price
$0.83000

Current price of NX3225SA-20.000000MHZ-B2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NX3225SA-20.000000MHZ-B2 Specifications
Type Description
Series:NX3225SA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:MHz Crystal
Frequency:20 MHz
Frequency Stability:±15ppm
Frequency Tolerance:±10ppm
Load Capacitance:7.2pF
ESR (Equivalent Series Resistance):80 Ohms
Operating Mode:Fundamental
Operating Temperature:-30°C ~ 85°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.028" (0.70mm)
