ATS18ASM-1

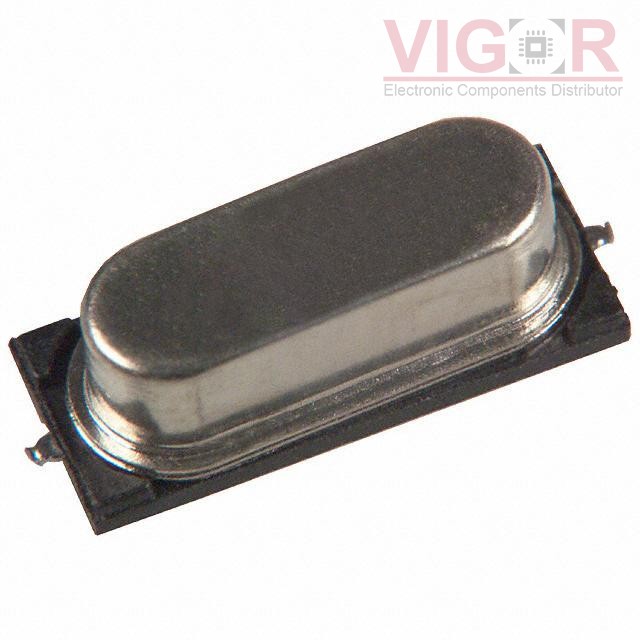

Image is for reference,
please contact us to get the real picture

Part No :: ATS18ASM-1

Manufacturer: CTS Corporation

Description: CRYSTAL 18.4320MHZ 20PF SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: ATS18ASM-1 PDF

Availability: 0 pieces

Unit Price: ~~$0.19520~~

Current price of ATS18ASM-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATS18ASM-1 Specifications

Type	Description
Series:	ATS-SM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	MHz Crystal
Frequency:	18.432 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±30ppm
Load Capacitance:	20pF
ESR (Equivalent Series Resistance):	40 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-20°C ~ 70°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	HC-49/US
Size / Dimension:	0.437" L x 0.190" W (11.10mm x 4.83mm)
Height - Seated (Max):	0.169" (4.30mm)
