ABM8W-22.5792MHZ-7-J1Z-T3

ABM8W-22.5792MHZ-7-J1Z-T3

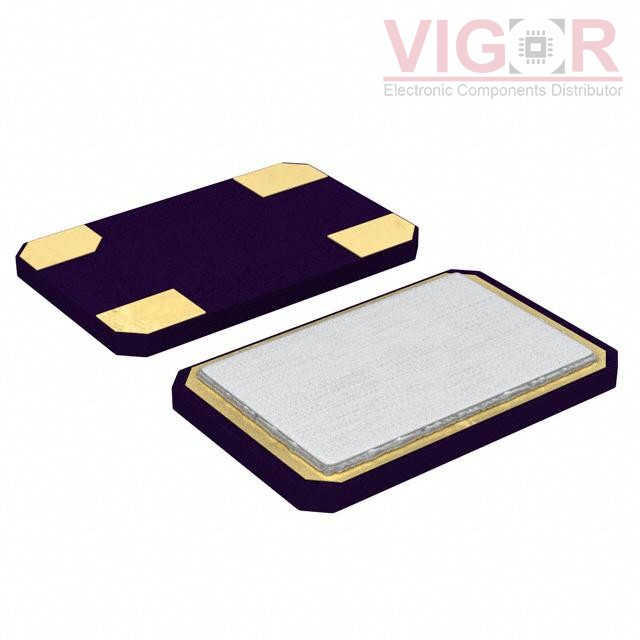

Image is for reference,
please contact us to get the real picture

Part No :

ABM8W-22.5792MHZ-7-J1Z-T3

Manufacturer
Abracon
Description
CRYSTAL 22.5792MHZ 7PF SMD
Catalog
Crystals
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
ABM8W-22.5792MHZ-7-J1Z-T3 PDF
Availability
0 pieces
Unit Price
$0.34560

Current price of ABM8W-22.5792MHZ-7-J1Z-T3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ABM8W-22.5792MHZ-7-J1Z-T3 Specifications
Type Description
Series:ABM8W
Package:Tape & Reel (TR)
Part Status:Active
Type:MHz Crystal
Frequency:22.5792 MHz
Frequency Stability:±50ppm
Frequency Tolerance:±10ppm
Load Capacitance:7pF
ESR (Equivalent Series Resistance):50 Ohms
Operating Mode:Fundamental
Operating Temperature:-40°C ~ 105°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.030" (0.75mm)
