ABM8G-22.1184MHZ-B4Y-T3

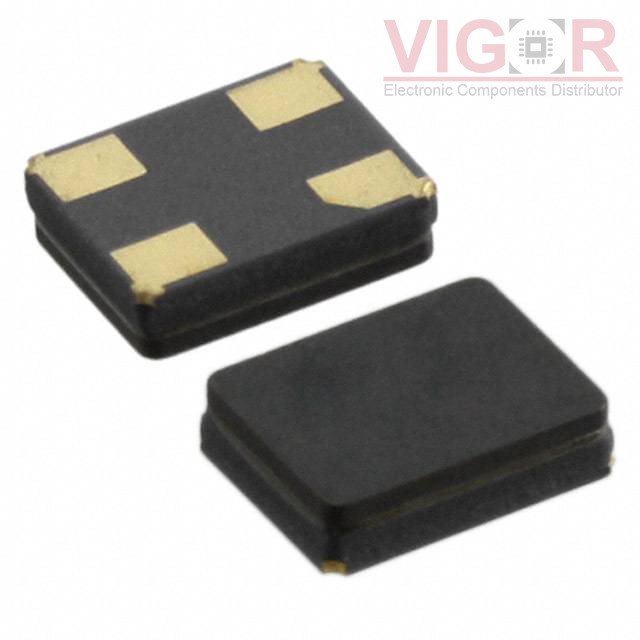

Image is for reference,
please contact us to get the real picture

Part No :: ABM8G-22.1184MHZ-B4Y-T3

Manufacturer: Abracon

Description: CRYSTAL 22.1184MHZ 10PF SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: ABM8G-22.1184MHZ-B4Y-T3 PDF

Availability: 0 pieces

Unit Price: ~~$0.41760~~

Current price of ABM8G-22.1184MHZ-B4Y-T3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ABM8G-22.1184MHZ-B4Y-T3 Specifications

Type	Description
Series:	ABM8G
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	MHz Crystal
Frequency:	22.1184 MHz
Frequency Stability:	±30ppm
Frequency Tolerance:	±30ppm
Load Capacitance:	10pF
ESR (Equivalent Series Resistance):	60 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-20°C ~ 70°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.039" (1.00mm)
