MA-506 20.0000M-F2

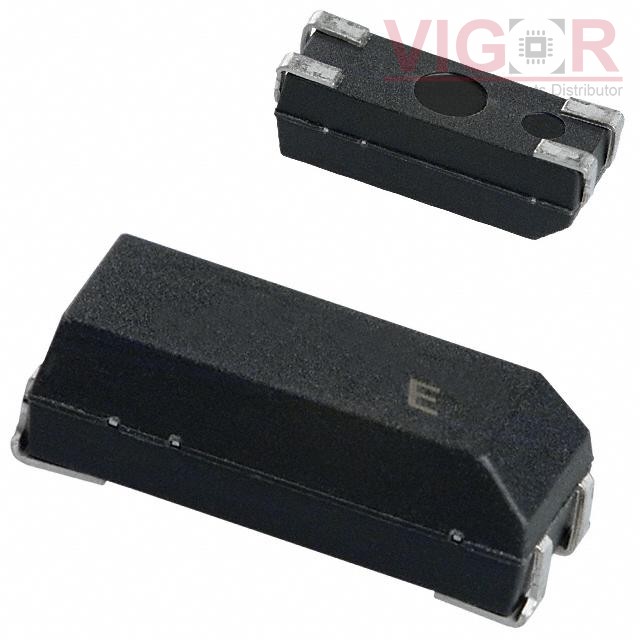

Image is for reference,
please contact us to get the real picture

Part No :: MA-506 20.0000M-F2

Manufacturer: Epson

Description: CRYSTAL 20.0000MHZ SERIES SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Aug 12 - Aug 16 2025

DataSheet: MA-506 20.0000M-F2 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of MA-506 20.0000M-F2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MA-506 20.0000M-F2 Specifications

Type	Description
Series:	MA-506
Package:	Bulk
Part Status:	Obsolete
Type:	MHz Crystal
Frequency:	20 MHz
Frequency Stability:	±30ppm
Frequency Tolerance:	±50ppm
Load Capacitance:	Series
ESR (Equivalent Series Resistance):	40 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-20°C ~ 70°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SOJ, 3.30mm pitch
Size / Dimension:	0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max):	0.181" (4.60mm)

Please confirm the specifications of the products when ordering.
