SG-8101CG 16.0000M-TCHSAB

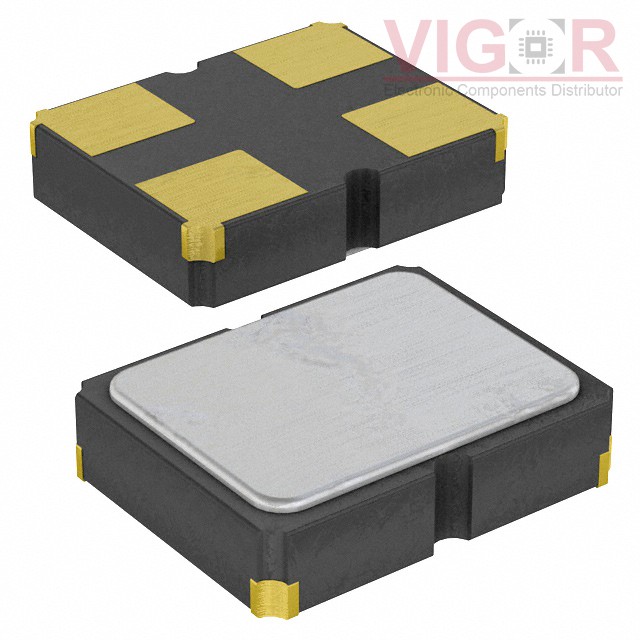

Image is for reference,
please contact us to get the real picture

Part No :: SG-8101CG 16.0000M-TCHSAB

Manufacturer: Epson

Description: XTAL OSC XO 16.0000MHZ CMOS SMD

Catalog: Oscillators

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: SG-8101CG 16.0000M-TCHSAB PDF

Availability: 0 pieces

Unit Price: ~~$2.73350~~

Current price of SG-8101CG 16.0000M-TCHSAB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-8101CG 16.0000M-TCHSAB Specifications

Type	Description
Series:	SG-8101CG
Package:	Strip
Part Status:	Active
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	16 MHz
Function:	Standby (Power Down)
Output:	CMOS
Voltage - Supply:	1.8V
Frequency Stability:	±20ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 105°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	3.3mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.031" (0.80mm)
