SiT5156AECFD-28N0-40.000000F

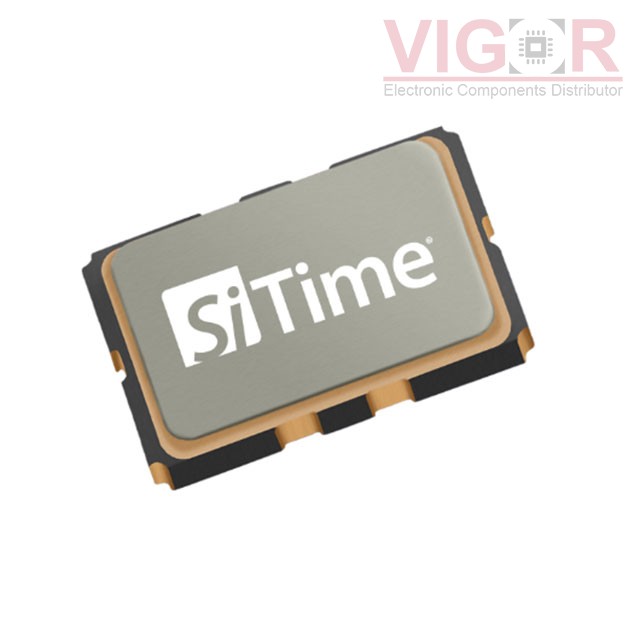

Image is for reference,
please contact us to get the real picture

Part No :: SiT5156AECFD-28N0-40.000000F

Manufacturer: SiTime

Description: XTAL OSC TCXO 40.0000MHZ

Catalog: Oscillators

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: SiT5156AECFD-28N0-40.000000F PDF

Availability: 0 pieces

Unit Price: ~~$37.25000~~

Current price of SiT5156AECFD-28N0-40.000000F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SiT5156AECFD-28N0-40.000000F Specifications

Type	Description
Series:	SiT5156, Elite Platform™
Package:	Strip
Part Status:	Active
Base Resonator:	MEMS
Type:	TCXO
Frequency:	40 MHz
Function:	-
Output:	Clipped Sine Wave
Voltage - Supply:	2.8V
Frequency Stability:	±2.5ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 105°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	-
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	10-SMD, No Lead
Size / Dimension:	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max):	0.042" (1.06mm)
