SG-8101CG 12.000000 MHZ TCHPA

SG-8101CG 12.000000 MHZ TCHPA

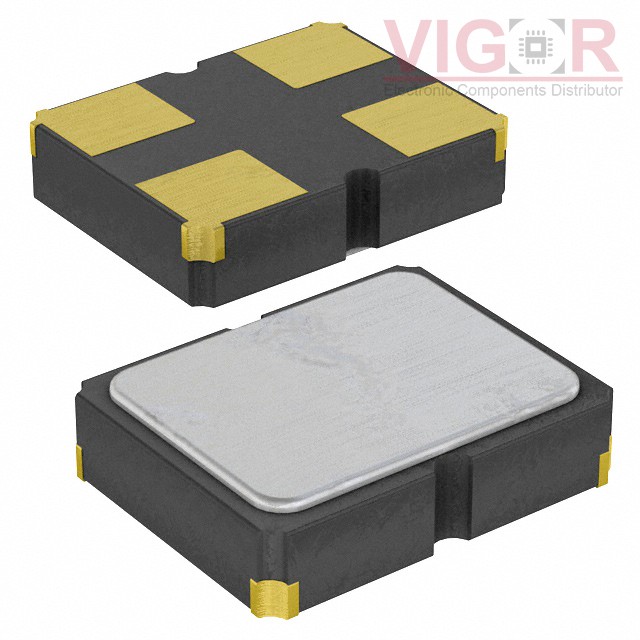

Image is for reference,
please contact us to get the real picture

Part No :

SG-8101CG 12.000000 MHZ TCHPA

Manufacturer
Epson
Description
XTAL OSC XO 12.0000MHZ CMOS SMD
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
SG-8101CG 12.000000 MHZ TCHPA PDF
Availability
0 pieces
Unit Price
$2.73350

Current price of SG-8101CG 12.000000 MHZ TCHPA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-8101CG 12.000000 MHZ TCHPA Specifications
Type Description
Series:SG-8101CG
Package:Bulk
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:12 MHz
Function:Enable/Disable
Output:CMOS
Voltage - Supply:1.8V
Frequency Stability:±20ppm
Absolute Pull Range (APR):-
Operating Temperature:-40°C ~ 105°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):3.2mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.031" (0.80mm)
