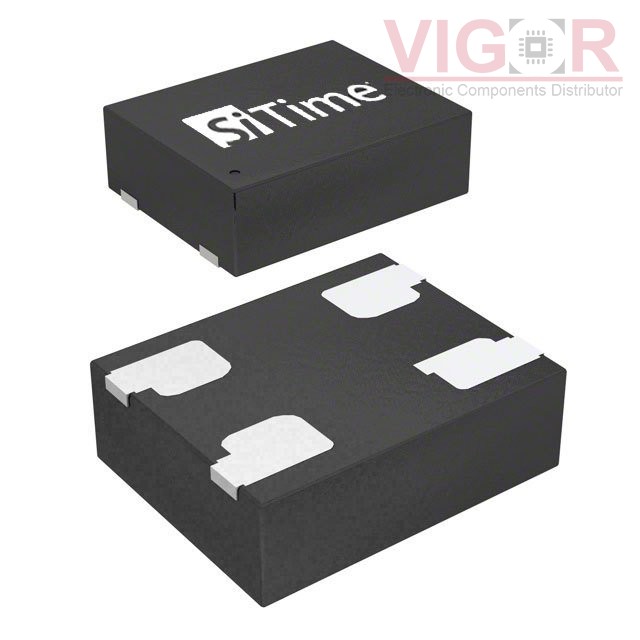

SIT8209AC-G2-25E-156.253906X

SIT8209AC-G2-25E-156.253906X

Image is for reference,
please contact us to get the real picture

Part No :

SIT8209AC-G2-25E-156.253906X

Manufacturer
SiTime
Description
MEMS OSC XO 156.253906MHZ LVCMOS
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
SIT8209AC-G2-25E-156.253906X PDF
Availability
0 pieces
Unit Price
$2.96480

Current price of SIT8209AC-G2-25E-156.253906X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SIT8209AC-G2-25E-156.253906X Specifications
Type Description
Series:SiT8209
Package:Tape & Reel (TR)
Part Status:Active
Base Resonator:MEMS
Type:XO (Standard)
Frequency:156.2539 MHz
Function:Enable/Disable
Output:LVCMOS, LVTTL
Voltage - Supply:2.5V
Frequency Stability:±25ppm
Absolute Pull Range (APR):-
Operating Temperature:-20°C ~ 70°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):36mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.106" L x 0.094" W (2.70mm x 2.40mm)
Height - Seated (Max):0.031" (0.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SiT3372AI-4E2-33NX25.000000Y

SiT3372AI-4E2-33NX25.000000Y

XTAL OSC VCXO 25.0000MHZ HCSL

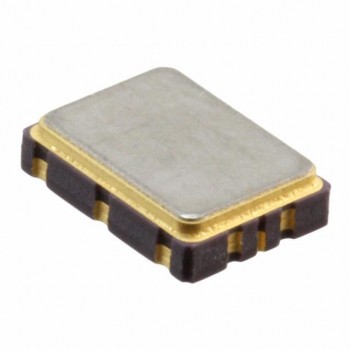

HOT 570BBA000121DG

570BBA000121DG

XTAL OSC XO 100.0000MHZ LVDS SMD

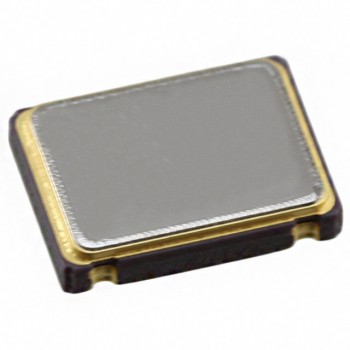

HOT CSX750FCC16000000T
