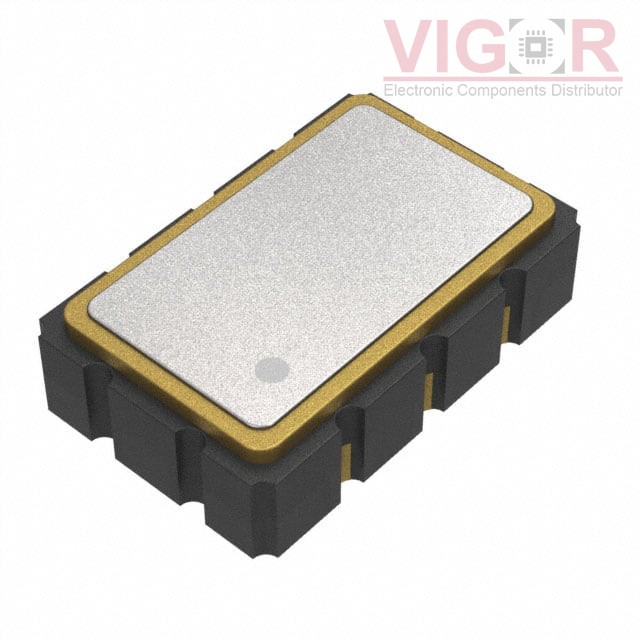

AX5DBF1-156.2539T

Image is for reference,
please contact us to get the real picture

Part No :

AX5DBF1-156.2539T

Manufacturer
Abracon
Description
OSC XO 156.253906MHZ 2.5V LVDS
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
AX5DBF1-156.2539T PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AX5DBF1-156.2539T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:ClearClock™ AX5
Package:Tape & Reel (TR)
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:156.2539 MHz
Function:Enable/Disable
Output:LVDS
Voltage - Supply:2.5V
Frequency Stability:±20ppm
Absolute Pull Range (APR):-
Operating Temperature:-40°C ~ 85°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):80mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:8-SMD, No Lead
Size / Dimension:0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max):0.059" (1.50mm)
