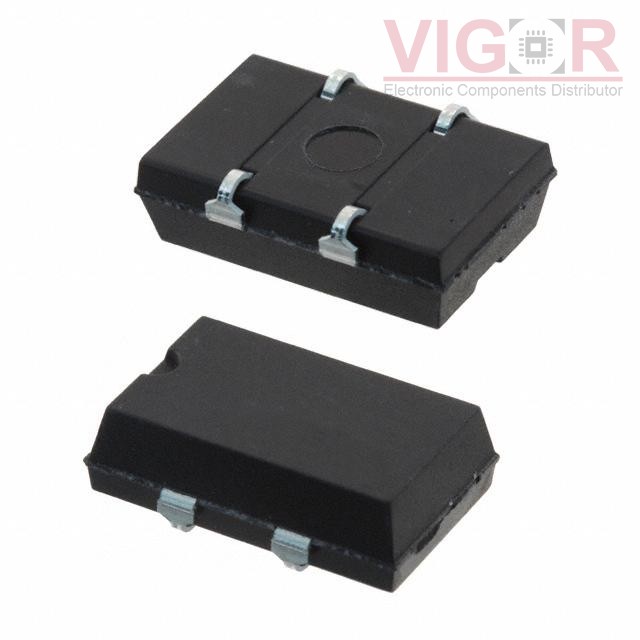

SG-615PCG 10.0000MM: ROHS

Image is for reference,
please contact us to get the real picture

Part No :: SG-615PCG 10.0000MM: ROHS

Manufacturer: Epson

Description: XTAL OSC XO 10.0000MHZ CMOS TTL

Catalog: Oscillators

Shipped from: HK warehouse

Expected Shipping Date: Jul 16 - Jul 20 2025

DataSheet: SG-615PCG 10.0000MM: ROHS PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SG-615PCG 10.0000MM: ROHS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-615PCG 10.0000MM: ROHS Specifications

Type	Description
Series:	SG-615PCG
Package:	Bulk
Part Status:	Obsolete
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	10 MHz
Function:	Enable/Disable
Output:	CMOS, TTL
Voltage - Supply:	3.3V
Frequency Stability:	±100ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	28mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SOJ, 5.08mm pitch
Size / Dimension:	0.551" L x 0.341" W (14.00mm x 8.65mm)
Height - Seated (Max):	0.185" (4.70mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SG-710ECK 36.0000MB

XTAL OSC XO 36.0000MHZ CMOS SMD

HOT

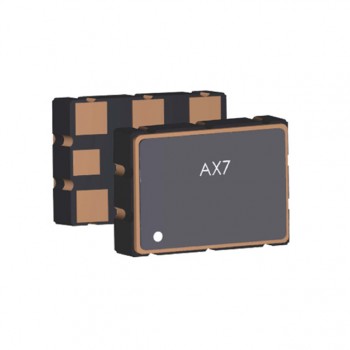

AX7DBF2-622.0800C

XTAL OSC XO 622.0800MHZ LVDS SMD

HOT

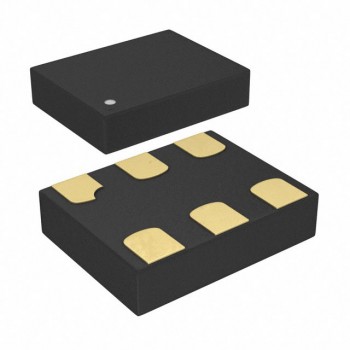

ASTMUPLDV-156.250MHZ-LJ-E-T
