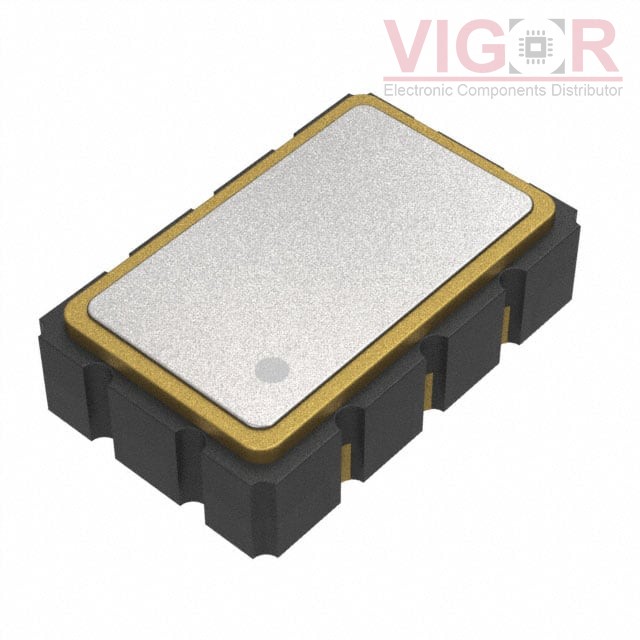

AX5DBF4-156.2500C

AX5DBF4-156.2500C

Image is for reference,
please contact us to get the real picture

Part No :

AX5DBF4-156.2500C

Manufacturer
Abracon
Description
OSC XO 156.25MHZ 2.5V LVDS
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
AX5DBF4-156.2500C PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AX5DBF4-156.2500C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX5DBF4-156.2500C Specifications
Type Description
Series:ClearClock™ AX5
Package:Strip
Part Status:Discontinued at Digi-Key
Base Resonator:Crystal
Type:XO (Standard)
Frequency:156.25 MHz
Function:Enable/Disable
Output:LVDS
Voltage - Supply:2.5V
Frequency Stability:±20ppm
Absolute Pull Range (APR):-
Operating Temperature:-40°C ~ 85°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):80mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:8-SMD, No Lead
Size / Dimension:0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max):0.059" (1.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT XLH736003.656700I

XLH736003.656700I

XTAL OSC XO 3.6567MHZ HCMOS SMD

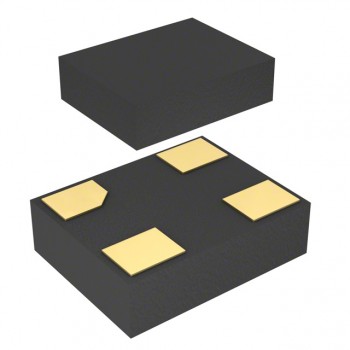

HOT 501HCAM032768CAFR

501HCAM032768CAFR

OSC CMEMS 32.7680KHZ LVCMOS

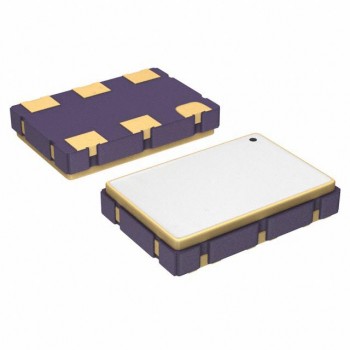

HOT XLH736171.797700X
