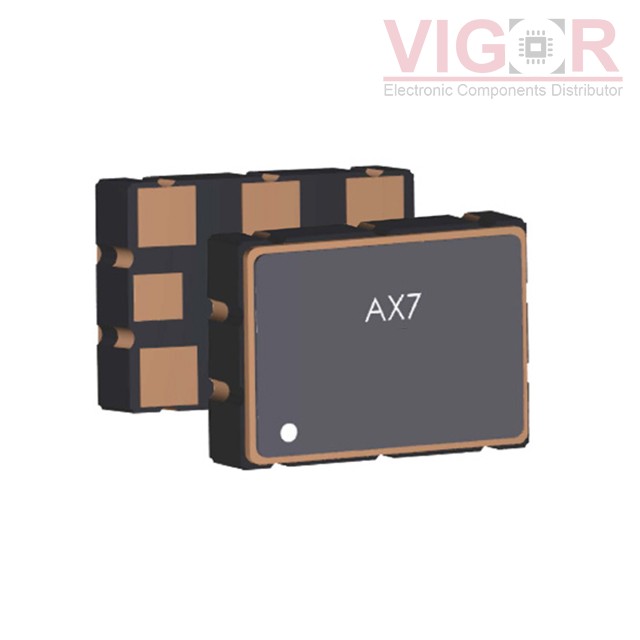

AX7PAF1-114.2850C

Image is for reference,
please contact us to get the real picture

Part No :: AX7PAF1-114.2850C

Manufacturer: Abracon

Description: XTAL OSC XO 114.2850MHZ LVPECL

Catalog: Oscillators

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: AX7PAF1-114.2850C PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AX7PAF1-114.2850C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX7PAF1-114.2850C Specifications

Type	Description
Series:	ClearClock™ AX7
Package:	Strip
Part Status:	Discontinued at Digi-Key
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	114.285 MHz
Function:	Enable/Disable
Output:	LVPECL
Voltage - Supply:	3.3V
Frequency Stability:	±25ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	94mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	8-SMD, No Lead
Size / Dimension:	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):	0.075" (1.90mm)
