SG-9101CE-D10SGCBA

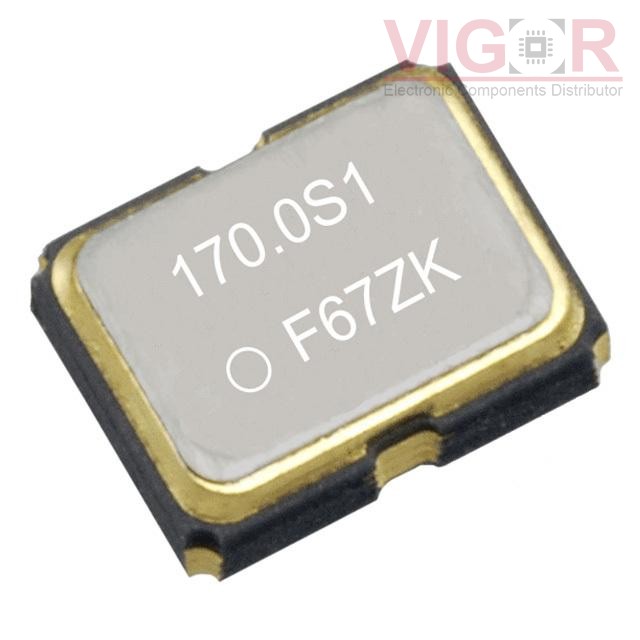

Image is for reference,
please contact us to get the real picture

Part No :: SG-9101CE-D10SGCBA

Manufacturer: Epson

Description: XTAL OSC PROG XO CMOS DWN SPRD

Catalog: Programmable Oscillators

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: SG-9101CE-D10SGCBA PDF

Availability: 1019 pieces

Unit Price: ~~$4.96000~~

Current price of SG-9101CE-D10SGCBA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-9101CE-D10SGCBA Specifications

Type	Description
Series:	SG-9101
Package:	Tube
Part Status:	Active
Base Resonator:	Crystal
Type:	XO (Standard)
Programmable Type:	Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range:	670 kHz ~ 170.0 MHz
Function:	Standby
Output:	CMOS
Voltage - Supply:	1.62V ~ 3.63V
Frequency Stability:	-
Frequency Stability (Total):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-1.00%, Down Spread
Current - Supply (Max):	-
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.047" (1.20mm)

Please confirm the specifications of the products when ordering.
