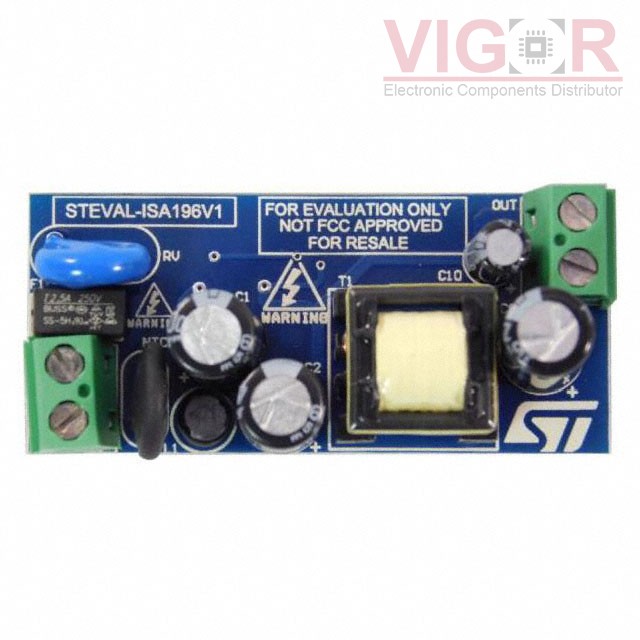

STEVAL-ISA196V1

Image is for reference,
please contact us to get the real picture

Part No :: STEVAL-ISA196V1

Manufacturer: STMicroelectronics

Description: 5 V / 1.2 A NON-ISOLATED FLYBACK

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: STEVAL-ISA196V1 PDF

Availability: 8 pieces

Unit Price: ~~$37.50000~~

Current price of STEVAL-ISA196V1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STEVAL-ISA196V1 Specifications

Type	Description
Series:	VIPer™ plus
Package:	Bulk
Part Status:	Active
Main Purpose:	AC/DC, Primary Side
Outputs and Type:	1, Non-Isolated
Power - Output:	6 W
Voltage - Output:	5V
Current - Output:	1.2A
Voltage - Input:	85 ~ 265 VAC
Regulator Topology:	Flyback
Frequency - Switching:	-
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	VIPer114LS

Please confirm the specifications of the products when ordering.
