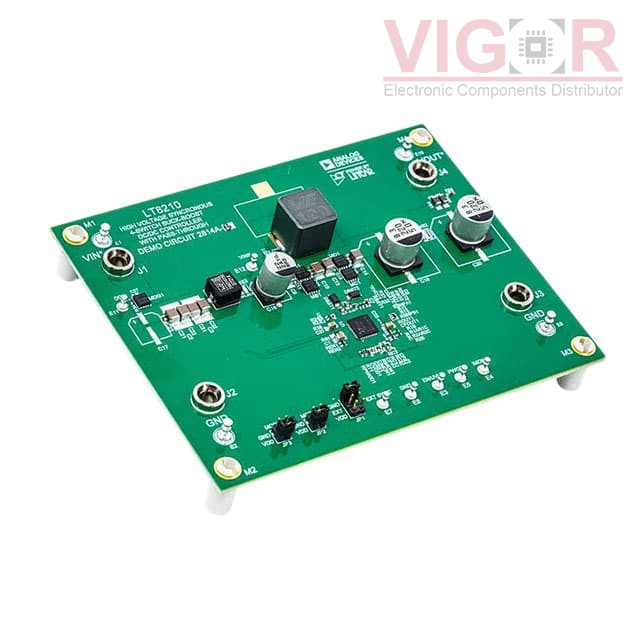

DC2814A-C

Image is for reference,
please contact us to get the real picture

Part No :: DC2814A-C

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: LT8210 DEMO BOARD

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: DC2814A-C PDF

Availability: 3 pieces

Unit Price: ~~$225.00000~~

Current price of DC2814A-C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC2814A-C Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Main Purpose:	DC/DC, Step Up or Down
Outputs and Type:	1, Non-Isolated
Power - Output:	-
Voltage - Output:	36V ~ 56V
Current - Output:	2A
Voltage - Input:	26V ~ 80V
Regulator Topology:	Boost, Buck
Frequency - Switching:	350kHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	LT8210
