DC1541A-B

DC1541A-B

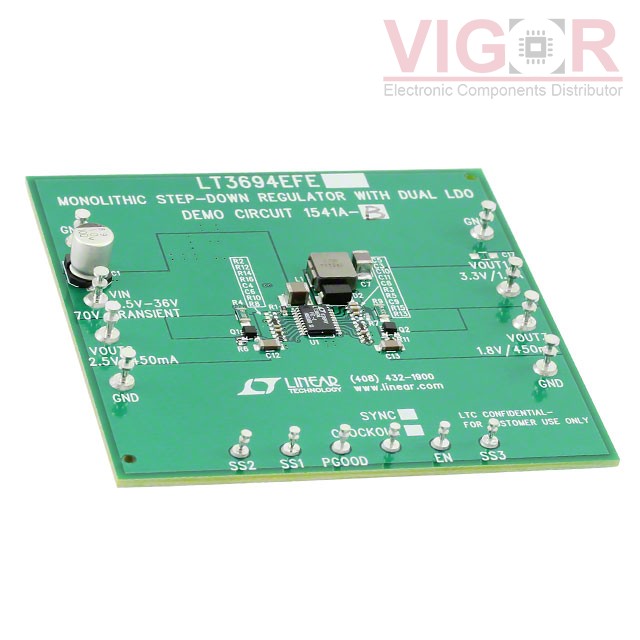

Image is for reference,
please contact us to get the real picture

Part No :

DC1541A-B

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
BOARD EVAL FOR LT3694EFE
Catalog
Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
DC1541A-B PDF
Availability
4 pieces
Unit Price
$125.00000

Current price of DC1541A-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC1541A-B Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Main Purpose:DC/DC, Step Down with LDO
Outputs and Type:3, Non-Isolated
Power - Output:-
Voltage - Output:1.8V, 2.5V, 3.3V
Current - Output:1.7A, 450mA, 450mA
Voltage - Input:4.5V ~ 36V
Regulator Topology:Buck
Frequency - Switching:800kHz
Board Type:Fully Populated
Supplied Contents:Board(s)
Utilized IC / Part:LT3694-1
