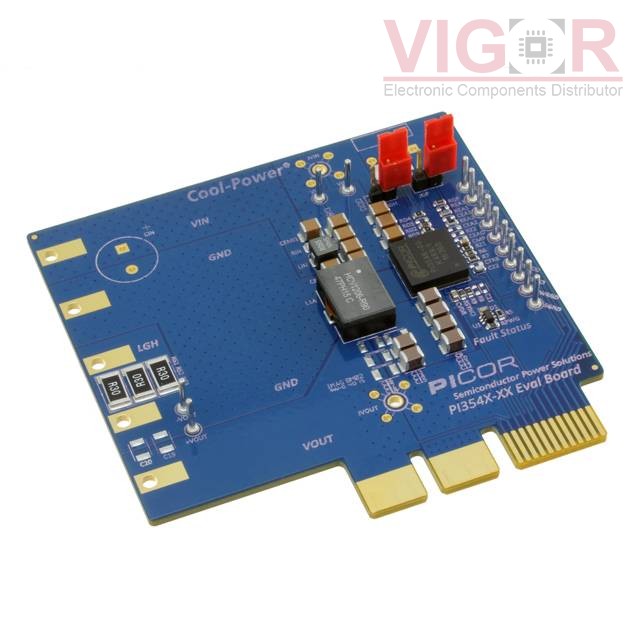

PI3546-00-EVAL1

Image is for reference,
please contact us to get the real picture

Part No :: PI3546-00-EVAL1

Manufacturer: Vicor

Description: EVAL BOARD FOR PI3546-00-LGIZ

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: PI3546-00-EVAL1 PDF

Availability: 8 pieces

Unit Price: ~~$53.36000~~

Current price of PI3546-00-EVAL1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PI3546-00-EVAL1 Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Main Purpose:	DC/DC, Step Up or Down
Outputs and Type:	1, Non-Isolated
Power - Output:	-
Voltage - Output:	12V
Current - Output:	9A
Voltage - Input:	36V ~ 60V
Regulator Topology:	Buck-Boost
Frequency - Switching:	800kHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	PI3546-00

Please confirm the specifications of the products when ordering.
