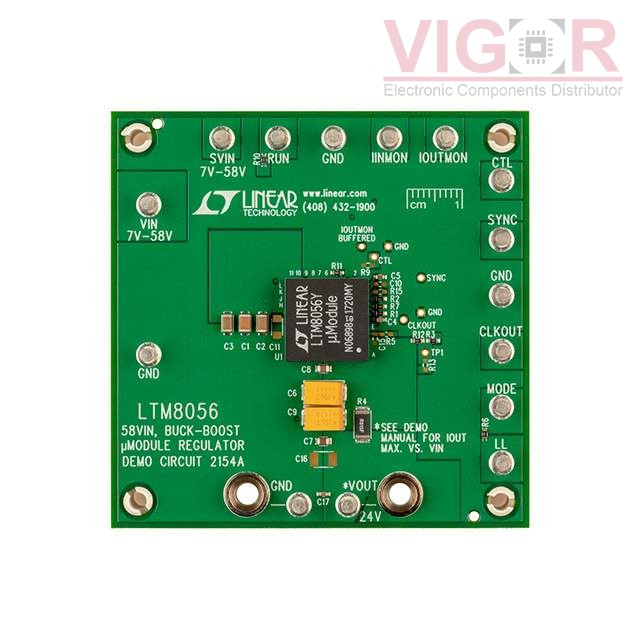

DC2154A

Image is for reference,
please contact us to get the real picture

Part No :: DC2154A

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: EVAL BOARD FOR LTM8056

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: DC2154A PDF

Availability: 28 pieces

Unit Price: ~~$65.00000~~

Current price of DC2154A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC2154A Specifications

Type	Description
Series:	µModule®
Package:	Box
Part Status:	Active
Main Purpose:	DC/DC, Step Up or Down
Outputs and Type:	1, Non-Isolated
Power - Output:	-
Voltage - Output:	24V
Current - Output:	3A
Voltage - Input:	7V ~ 58V
Regulator Topology:	Buck-Boost
Frequency - Switching:	525kHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	LTM8056

Please confirm the specifications of the products when ordering.
