DC1143A

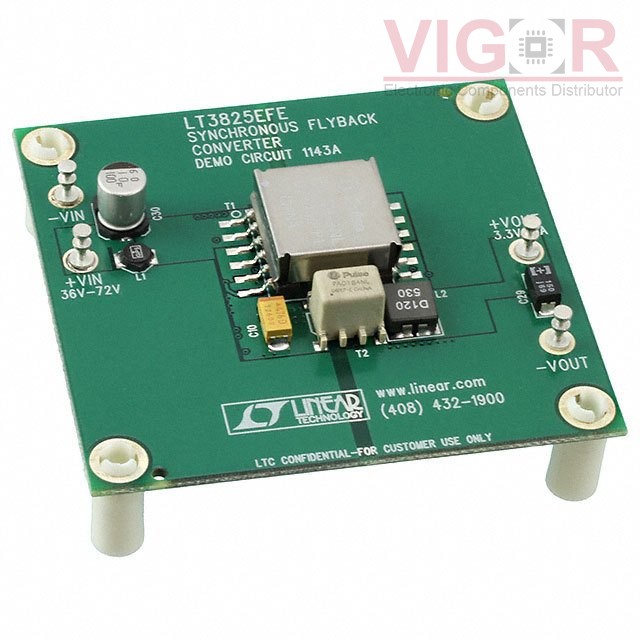

Image is for reference,
please contact us to get the real picture

Part No :: DC1143A

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: BOARD EVAL FOR LT3825EFE

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: DC1143A PDF

Availability: 3 pieces

Unit Price: ~~$150.00000~~

Current price of DC1143A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC1143A Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Main Purpose:	DC/DC, Step Down
Outputs and Type:	1, Isolated
Power - Output:	-
Voltage - Output:	3.3V
Current - Output:	6A
Voltage - Input:	36V ~ 72V
Regulator Topology:	Buck
Frequency - Switching:	250kHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	LT3825

Please confirm the specifications of the products when ordering.
