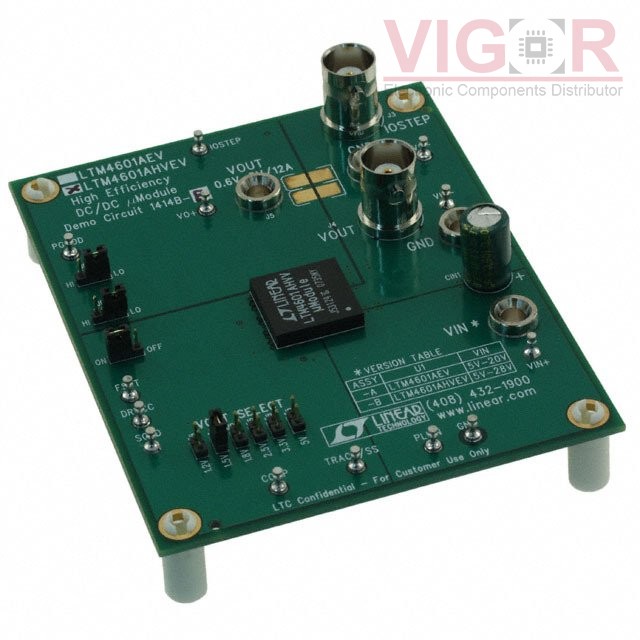

DC1414B-B

Image is for reference,
please contact us to get the real picture

Part No :: DC1414B-B

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: BOARD EVAL LTM4601AHV

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: DC1414B-B PDF

Availability: 9 pieces

Unit Price: ~~$65.00000~~

Current price of DC1414B-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC1414B-B Specifications

Type	Description
Series:	µModule®
Package:	Box
Part Status:	Active
Main Purpose:	DC/DC, Step Down
Outputs and Type:	1, Non-Isolated
Power - Output:	-
Voltage - Output:	0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V
Current - Output:	12A
Voltage - Input:	5V ~ 28V
Regulator Topology:	Buck
Frequency - Switching:	850kHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	LTM4601AHV

Please confirm the specifications of the products when ordering.
