DC2736A

DC2736A

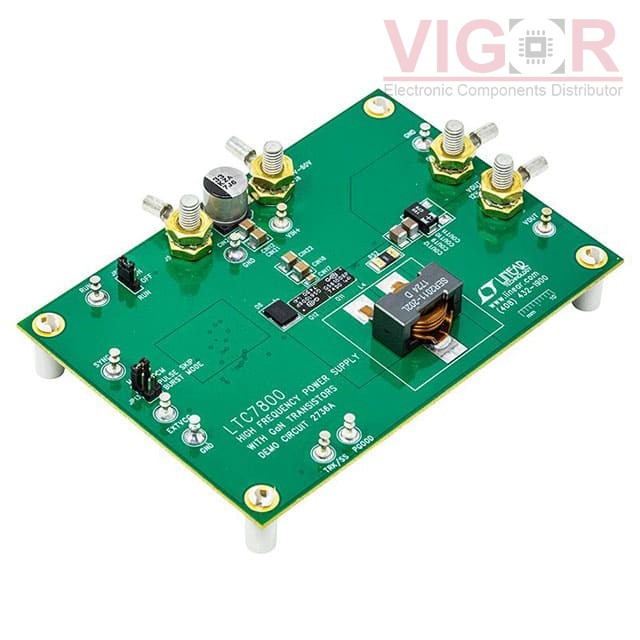

Image is for reference,
please contact us to get the real picture

Part No :

DC2736A

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
LTC7800EUDC DEMO BOARD WITH GANF
Catalog
Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
DC2736A PDF
Availability
12 pieces
Unit Price
$200.00000

Current price of DC2736A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC2736A Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Main Purpose:DC/DC, Step Down
Outputs and Type:1, Non-Isolated
Power - Output:-
Voltage - Output:12V
Current - Output:20A
Voltage - Input:30V ~ 55V
Regulator Topology:Buck
Frequency - Switching:500kHz
Board Type:Fully Populated
Supplied Contents:Board(s)
Utilized IC / Part:LTC7800
