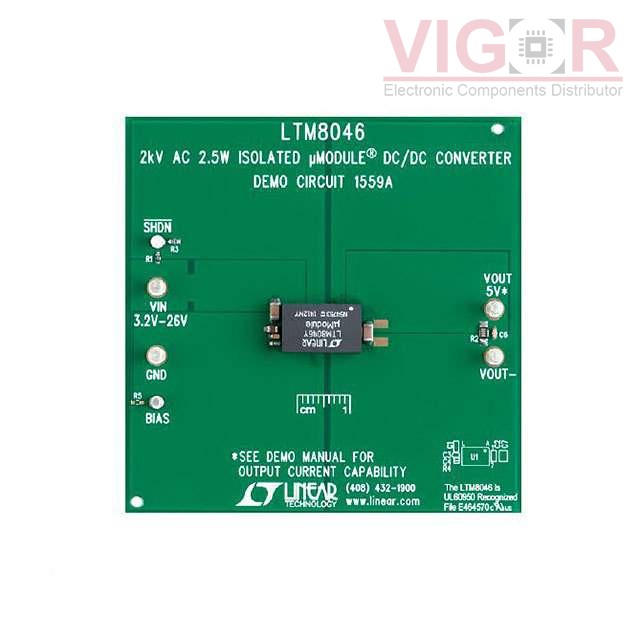

DC1559A

Image is for reference,
please contact us to get the real picture

Part No :: DC1559A

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: DEMOBOARD FOR THE LTM8046

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: DC1559A PDF

Availability: 5 pieces

Unit Price: ~~$65.00000~~

Current price of DC1559A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC1559A Specifications

Type	Description
Series:	µModule®
Package:	Box
Part Status:	Active
Main Purpose:	DC/DC Converter
Outputs and Type:	1, Isolated
Power - Output:	-
Voltage - Output:	5V
Current - Output:	550mA
Voltage - Input:	3.2V ~ 26V
Regulator Topology:	-
Frequency - Switching:	-
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	LTM8046

Please confirm the specifications of the products when ordering.
