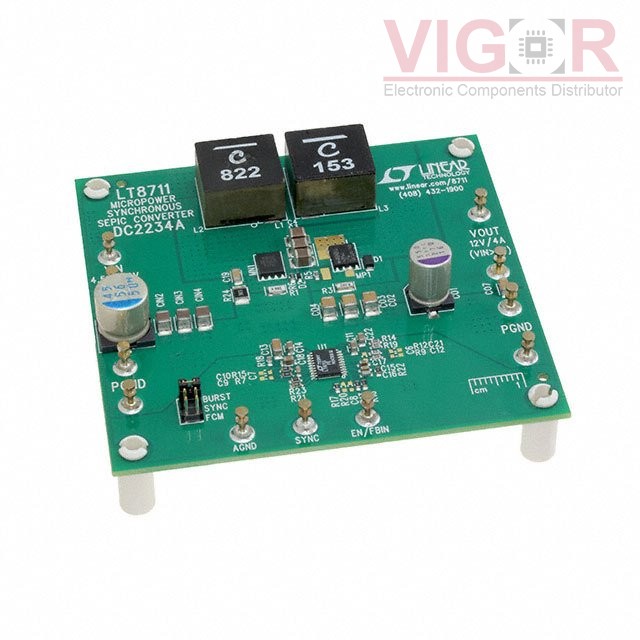

DC2234A

DC2234A

Image is for reference,
please contact us to get the real picture

Part No :

DC2234A

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
DEMO BOARD FOR LT8711EFE
Catalog
Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
DC2234A PDF
Availability
15 pieces
Unit Price
$156.25000

Current price of DC2234A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC2234A Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Main Purpose:DC/DC, Step Up or Down
Outputs and Type:1, Non-Isolated
Power - Output:-
Voltage - Output:12V
Current - Output:4A
Voltage - Input:4.5V ~ 40V
Regulator Topology:Boost, SEPIC
Frequency - Switching:200kHz
Board Type:Fully Populated
Supplied Contents:Board(s)
Utilized IC / Part:LT8711
