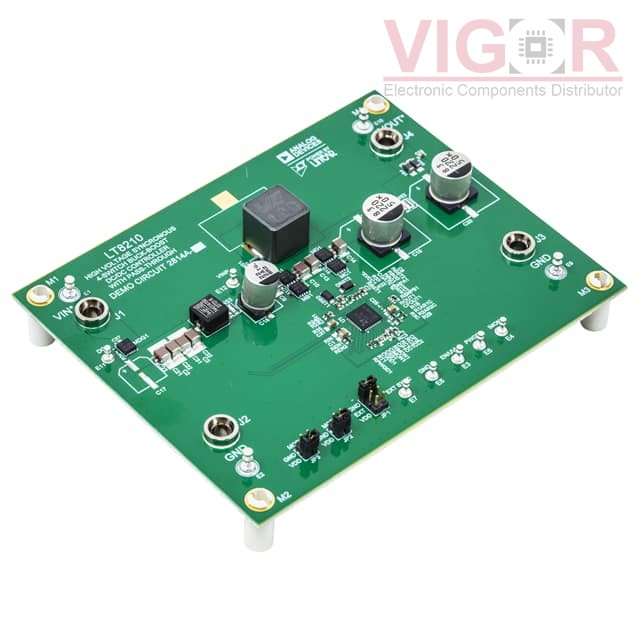

DC2814A-A

DC2814A-A

Image is for reference,
please contact us to get the real picture

Part No :

DC2814A-A

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
LT8210 DEMO BOARD
Catalog
Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
DC2814A-A PDF
Availability
7 pieces
Unit Price
$225.00000

Current price of DC2814A-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC2814A-A Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Main Purpose:DC/DC, Step Up or Down
Outputs and Type:1, Non-Isolated
Power - Output:-
Voltage - Output:8V ~ 16V
Current - Output:3A
Voltage - Input:8V ~ 80V
Regulator Topology:Boost, Buck
Frequency - Switching:385kHz
Board Type:Fully Populated
Supplied Contents:Board(s)
Utilized IC / Part:LT8210
