CS10S

CS10S

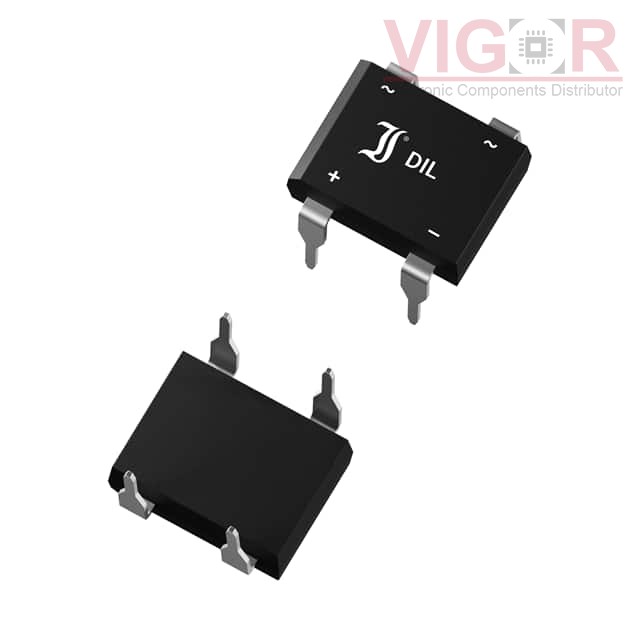

Image is for reference,
please contact us to get the real picture

Part No :

CS10S

Manufacturer
Diotec Semiconductor
Description
1PH BRIDGE DIL 20V 1A
Catalog
Diodes - Bridge Rectifiers
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
CS10S PDF
Availability
0 pieces
Unit Price
$0.20360

Current price of CS10S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS10S Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Single Phase
Technology:Schottky
Voltage - Peak Reverse (Max):20 V
Current - Average Rectified (Io):1 A
Voltage - Forward (Vf) (Max) @ If:0.5 V @ 1 A
Current - Reverse Leakage @ Vr:500 µA @ 20 V
Operating Temperature:-50°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-269AA, 4-BESOP
Supplier Device Package:4-SOIC
