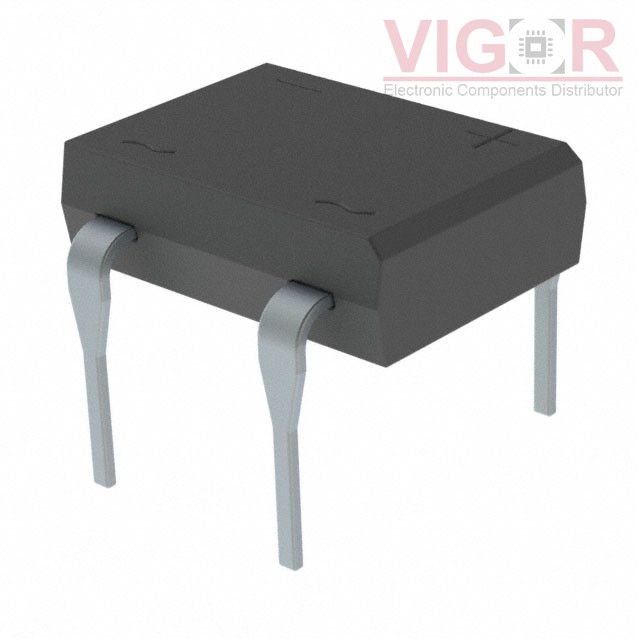

DBL156GHC1G

DBL156GHC1G

Image is for reference,
please contact us to get the real picture

Part No :

DBL156GHC1G

Manufacturer
TSC (Taiwan Semiconductor)
Description
BRIDGE RECT 1PHASE 800V 1.5A DBL
Catalog
Diodes - Bridge Rectifiers
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
DBL156GHC1G PDF
Availability
0 pieces
Unit Price
$0.21472

Current price of DBL156GHC1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DBL156GHC1G Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tube
Part Status:Active
Diode Type:Single Phase
Technology:Standard
Voltage - Peak Reverse (Max):800 V
Current - Average Rectified (Io):1.5 A
Voltage - Forward (Vf) (Max) @ If:1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr:2 µA @ 800 V
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:4-DIP (0.300", 7.62mm)
Supplier Device Package:DBL
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

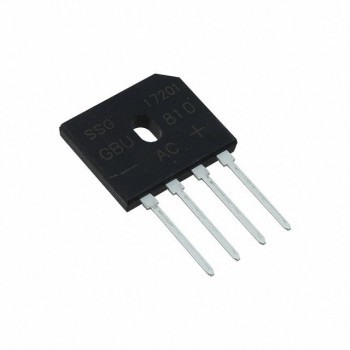

HOT GBU606GTB

GBU606GTB

BRIDGE RECT 1PHASE 600V 6A GBU

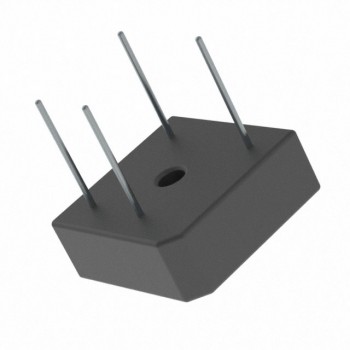

HOT GBPC2508W T0G

GBPC2508W T0G

BRIDGE RECT 1P 800V 25A GBPC-W

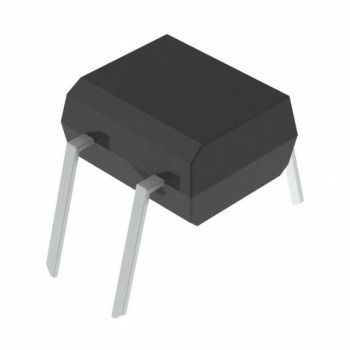

HOT B4M-E3/45
