DB156TB

DB156TB

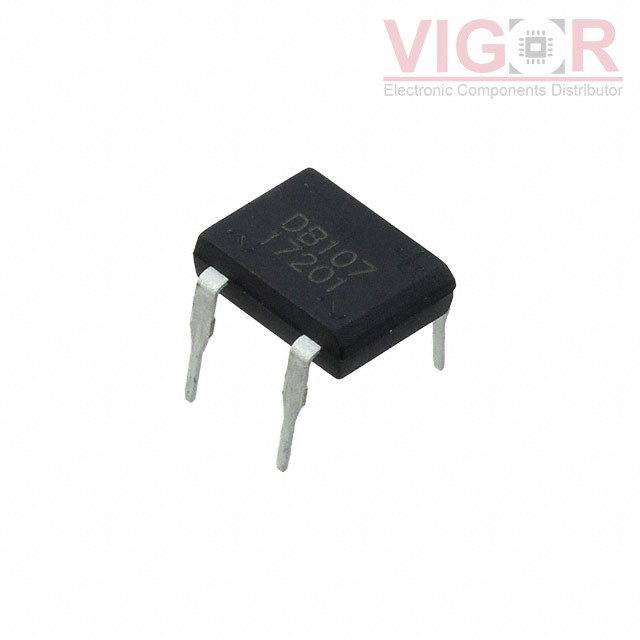

Image is for reference,
please contact us to get the real picture

Part No :

DB156TB

Manufacturer
SMC Diode Solutions
Description
BRIDGE RECT 1P 800V 1.5A DB-M
Catalog
Diodes - Bridge Rectifiers
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
DB156TB PDF
Availability
0 pieces
Unit Price
$0.11366

Current price of DB156TB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DB156TB Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Diode Type:Single Phase
Technology:Standard
Voltage - Peak Reverse (Max):800 V
Current - Average Rectified (Io):1.5 A
Voltage - Forward (Vf) (Max) @ If:1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr:5 µA @ 800 V
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:4-EDIP (0.321", 8.15mm)
Supplier Device Package:DB-M
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
