CS20S

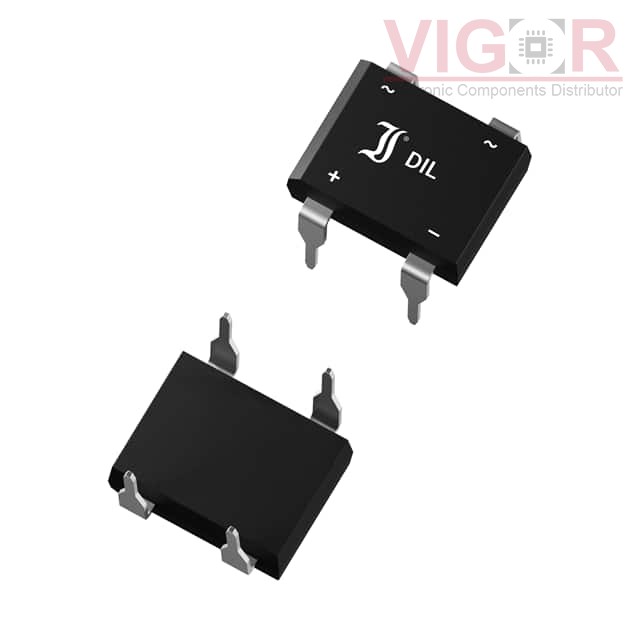

Image is for reference,
please contact us to get the real picture

Part No :: CS20S

Manufacturer: Diotec Semiconductor

Description: 1PH BRIDGE DIL 40V 1A

Catalog: Diodes - Bridge Rectifiers

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: CS20S PDF

Availability: 0 pieces

Unit Price: ~~$0.20360~~

Current price of CS20S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS20S Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Type:	Single Phase
Technology:	Schottky
Voltage - Peak Reverse (Max):	40 V
Current - Average Rectified (Io):	1 A
Voltage - Forward (Vf) (Max) @ If:	0.5 V @ 1 A
Current - Reverse Leakage @ Vr:	500 µA @ 40 V
Operating Temperature:	-50°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-269AA, 4-BESOP
Supplier Device Package:	4-SOIC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

GBPC1502W T0G

BRIDGE RECT 1P 200V 15A GBPC-W

HOT

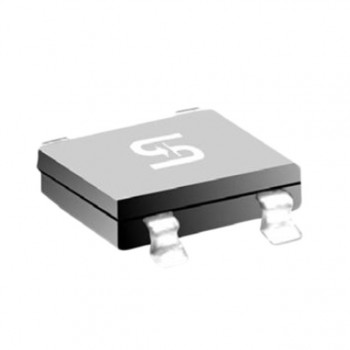

SBS24HREG

BRIDGE RECT 1PHASE 40V 2A ABS

HOT

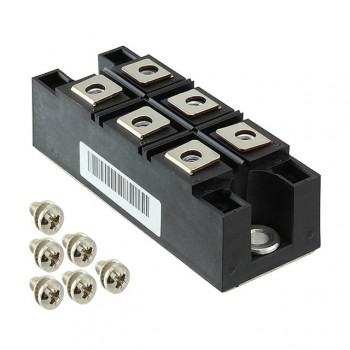

VS-160MT160KPBF
