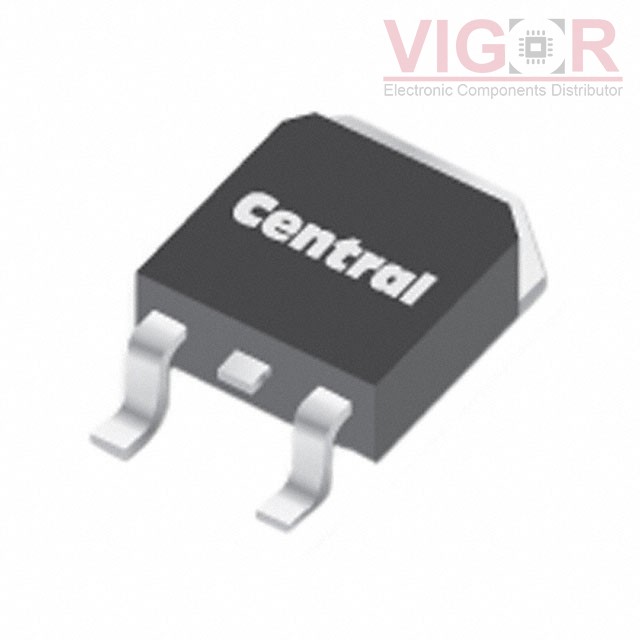

CSHDD16-200C TR13 PBFREE

Image is for reference,
please contact us to get the real picture

Part No :: CSHDD16-200C TR13 PBFREE

Manufacturer: Central Semiconductor

Description: DIODE ARRAY SCHOTTKY 200V D2PAK

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: CSHDD16-200C TR13 PBFREE PDF

Availability: 1600 pieces

Unit Price: ~~$1.62000~~

Current price of CSHDD16-200C TR13 PBFREE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSHDD16-200C TR13 PBFREE Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io) (per Diode):	16A
Voltage - Forward (Vf) (Max) @ If:	1.2 V @ 16 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	50 µA @ 200 V
Operating Temperature - Junction:	-65°C ~ 175°C
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SBCT2020

SCHOTTKY TO-220AB 20V 20A

HOT

MBRT12020

DIODE MODULE 20V 120A 3TOWER

HOT

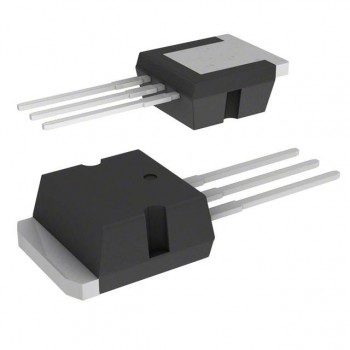

STPS30SM60CR
