DD540N22KTIMHPSA1

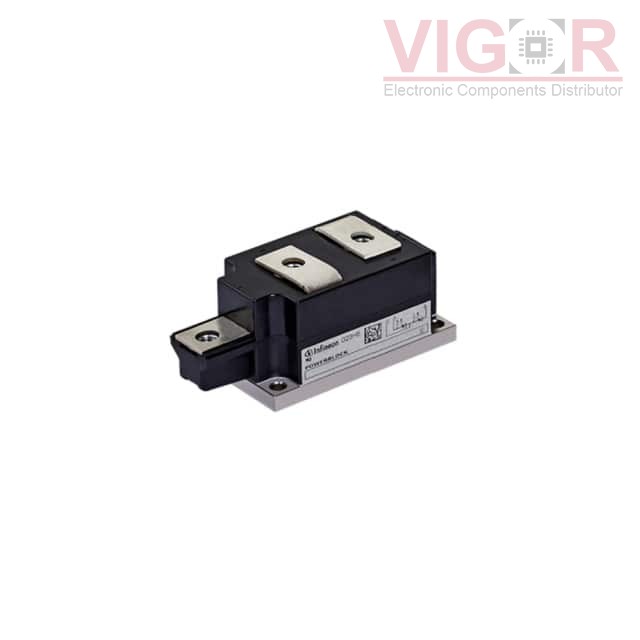

Image is for reference,
please contact us to get the real picture

Part No :: DD540N22KTIMHPSA1

Manufacturer: IR (Infineon Technologies)

Description: THYR / DIODE MODULE DK

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: DD540N22KTIMHPSA1 PDF

Availability: 0 pieces

Unit Price: ~~$303.80000~~

Current price of DD540N22KTIMHPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DD540N22KTIMHPSA1 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	2200 V
Current - Average Rectified (Io) (per Diode):	540A
Voltage - Forward (Vf) (Max) @ If:	1.48 V @ 1.7 kA
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	40 mA @ 2200 V
Operating Temperature - Junction:	150°C (Max)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	BG-PB60AT-1

Please confirm the specifications of the products when ordering.
