BAV23CC

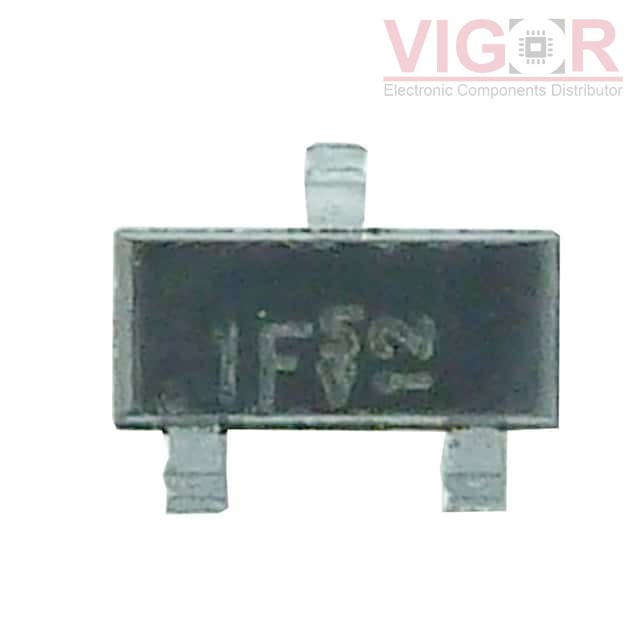

Image is for reference,
please contact us to get the real picture

Part No :

BAV23CC

Manufacturer
DComponents
Description
DIODE ARRAY GP 200V 225MA SOT23
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
BAV23CC PDF
Availability
10 pieces
Unit Price
$0.04460

Current price of BAV23CC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):200 V
Current - Average Rectified (Io) (per Diode):225mA
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 200 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):50 ns
Current - Reverse Leakage @ Vr:100 nA @ 200 V
Operating Temperature - Junction:-55°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23-3 (TO-236)
