SBAT54CTT1G

SBAT54CTT1G

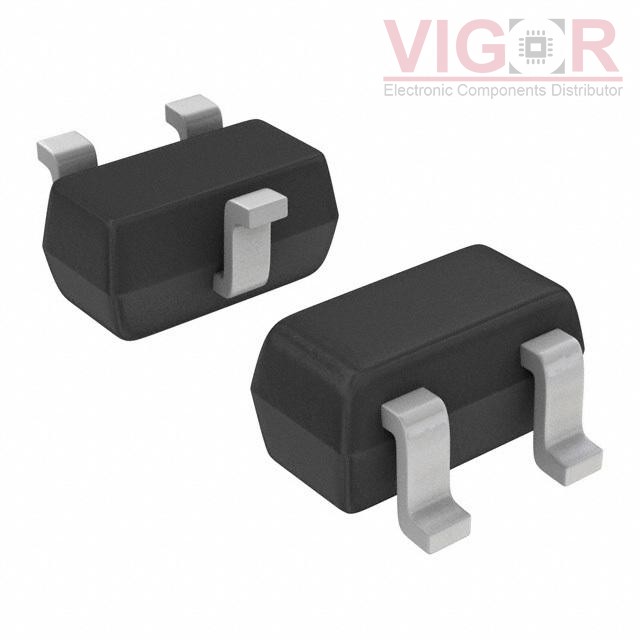

Image is for reference,
please contact us to get the real picture

Part No :

SBAT54CTT1G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DIODE ARRAY SCHOTTKY 30V SC75
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
SBAT54CTT1G PDF
Availability
0 pieces
Unit Price
$0.11543

Current price of SBAT54CTT1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SBAT54CTT1G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):200mA (DC)
Voltage - Forward (Vf) (Max) @ If:800 mV @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):5 ns
Current - Reverse Leakage @ Vr:2 µA @ 25 V
Operating Temperature - Junction:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:SC-75, SOT-416
Supplier Device Package:SC-75, SOT-416
