BAT120C,115

BAT120C,115

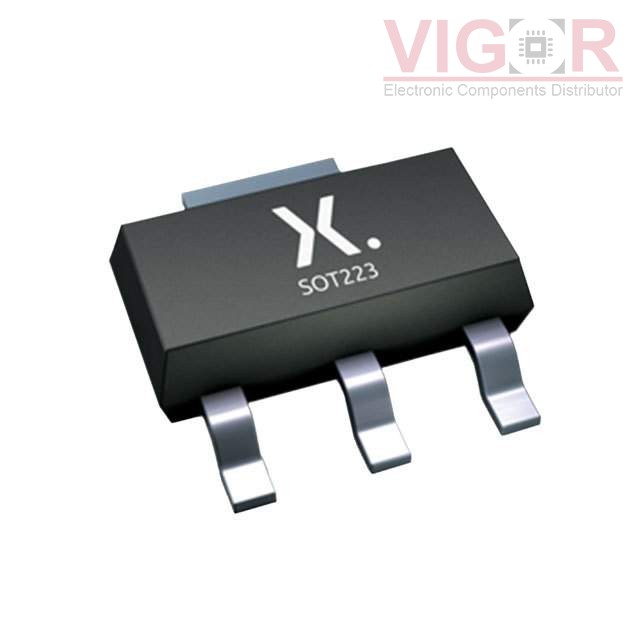

Image is for reference,
please contact us to get the real picture

Part No :

BAT120C,115

Manufacturer
Nexperia
Description
DIODE ARRAY SCHOTTKY 25V SOT223
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
BAT120C,115 PDF
Availability
4508 pieces
Unit Price
$0.53000

Current price of BAT120C,115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT120C,115 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):25 V
Current - Average Rectified (Io) (per Diode):1A (DC)
Voltage - Forward (Vf) (Max) @ If:450 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:1 mA @ 25 V
Operating Temperature - Junction:125°C (Max)
Mounting Type:Surface Mount
Package / Case:TO-261-4, TO-261AA
Supplier Device Package:SOT-223
