153CMQ080

153CMQ080

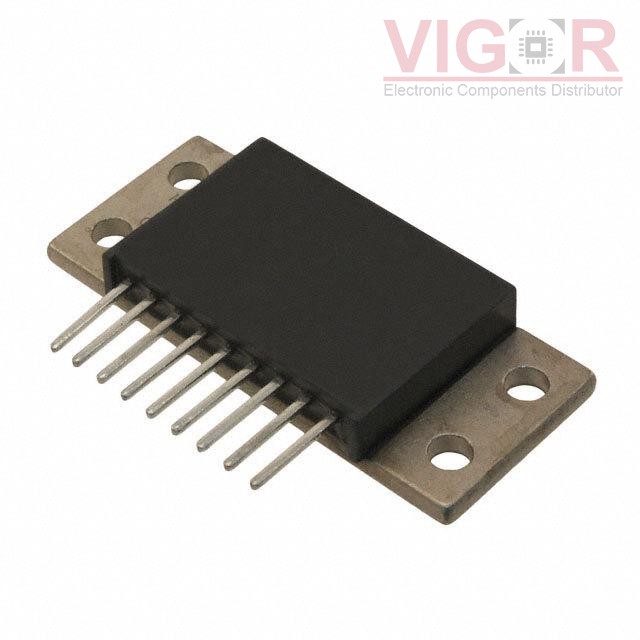

Image is for reference,
please contact us to get the real picture

Part No :

153CMQ080

Manufacturer
SMC Diode Solutions
Description
150A, 80V, TO-249, POWER MODULES
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
153CMQ080 PDF
Availability
24 pieces
Unit Price
$43.57000

Current price of 153CMQ080 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

153CMQ080 Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):80 V
Current - Average Rectified (Io) (per Diode):75A
Voltage - Forward (Vf) (Max) @ If:960 mV @ 75 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:1.5 mA @ 80 V
Operating Temperature - Junction:-55°C ~ 175°C
Mounting Type:Chassis Mount
Package / Case:TO-249AA (Modified), D-60
Supplier Device Package:TO-249
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
