BAV170QAZ

BAV170QAZ

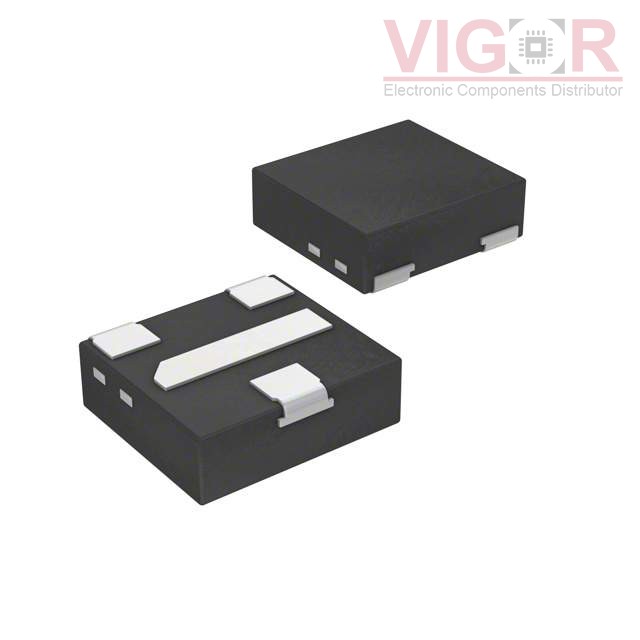

Image is for reference,
please contact us to get the real picture

Part No :

BAV170QAZ

Manufacturer
Nexperia
Description
DIODE HS SW 75V 180MA 3DFN1010
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
BAV170QAZ PDF
Availability
2 pieces
Unit Price
$0.25000

Current price of BAV170QAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAV170QAZ Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):75 V
Current - Average Rectified (Io) (per Diode):180mA (DC)
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 150 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):3 µs
Current - Reverse Leakage @ Vr:5 nA @ 75 V
Operating Temperature - Junction:150°C (Max)
Mounting Type:Surface Mount
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1010D-3
