UG30DPT-E3/45

UG30DPT-E3/45

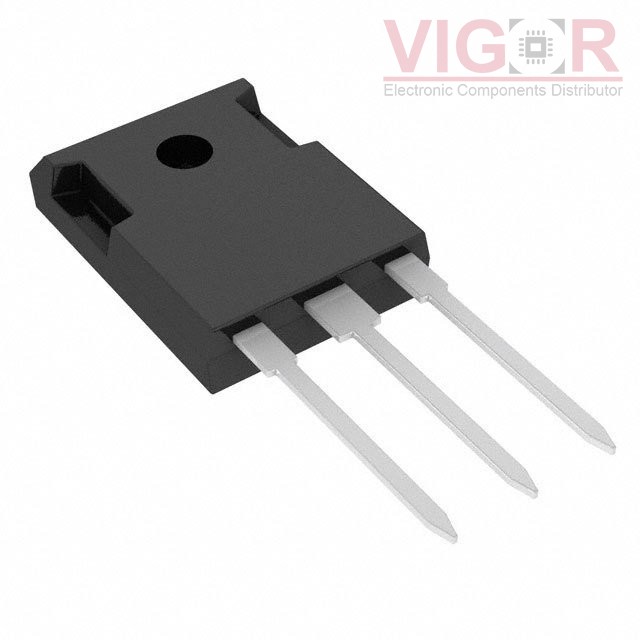

Image is for reference,
please contact us to get the real picture

Part No :

UG30DPT-E3/45

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE ARRAY GP 200V 30A TO3P
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
UG30DPT-E3/45 PDF
Availability
0 pieces
Unit Price
$3.43000

Current price of UG30DPT-E3/45 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UG30DPT-E3/45 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):200 V
Current - Average Rectified (Io) (per Diode):30A
Voltage - Forward (Vf) (Max) @ If:1.15 V @ 30 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):35 ns
Current - Reverse Leakage @ Vr:15 µA @ 200 V
Operating Temperature - Junction:-65°C ~ 150°C
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P
