DB4J314K0R

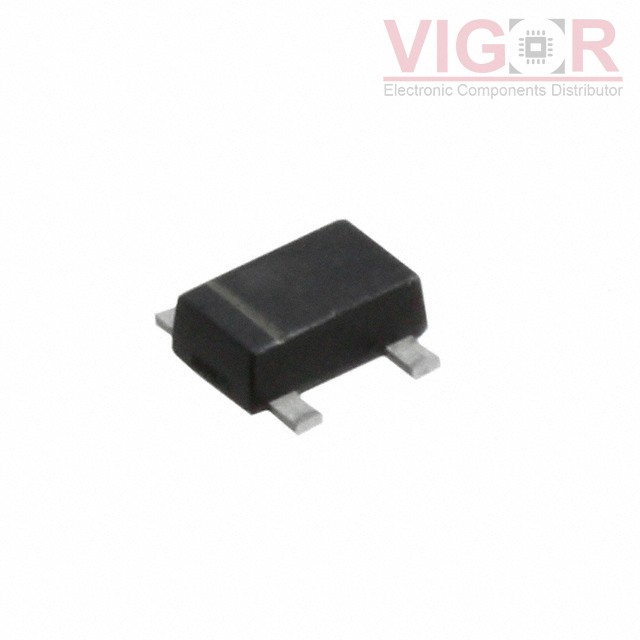

Image is for reference,
please contact us to get the real picture

Part No :

DB4J314K0R

Manufacturer
Panasonic
Description
DIODE ARRAY SCHOTTKY 30V SMINI4
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
DB4J314K0R PDF
Availability
7382 pieces
Unit Price
$0.38000

Current price of DB4J314K0R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Discontinued at Digi-Key
Diode Configuration:2 Independent
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io) (per Diode):30mA (DC)
Voltage - Forward (Vf) (Max) @ If:1 V @ 30 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):1 ns
Current - Reverse Leakage @ Vr:300 nA @ 30 V
Operating Temperature - Junction:125°C (Max)
Mounting Type:Surface Mount
Package / Case:4-SMD, Flat Leads
Supplier Device Package:SMini4-F3-B
